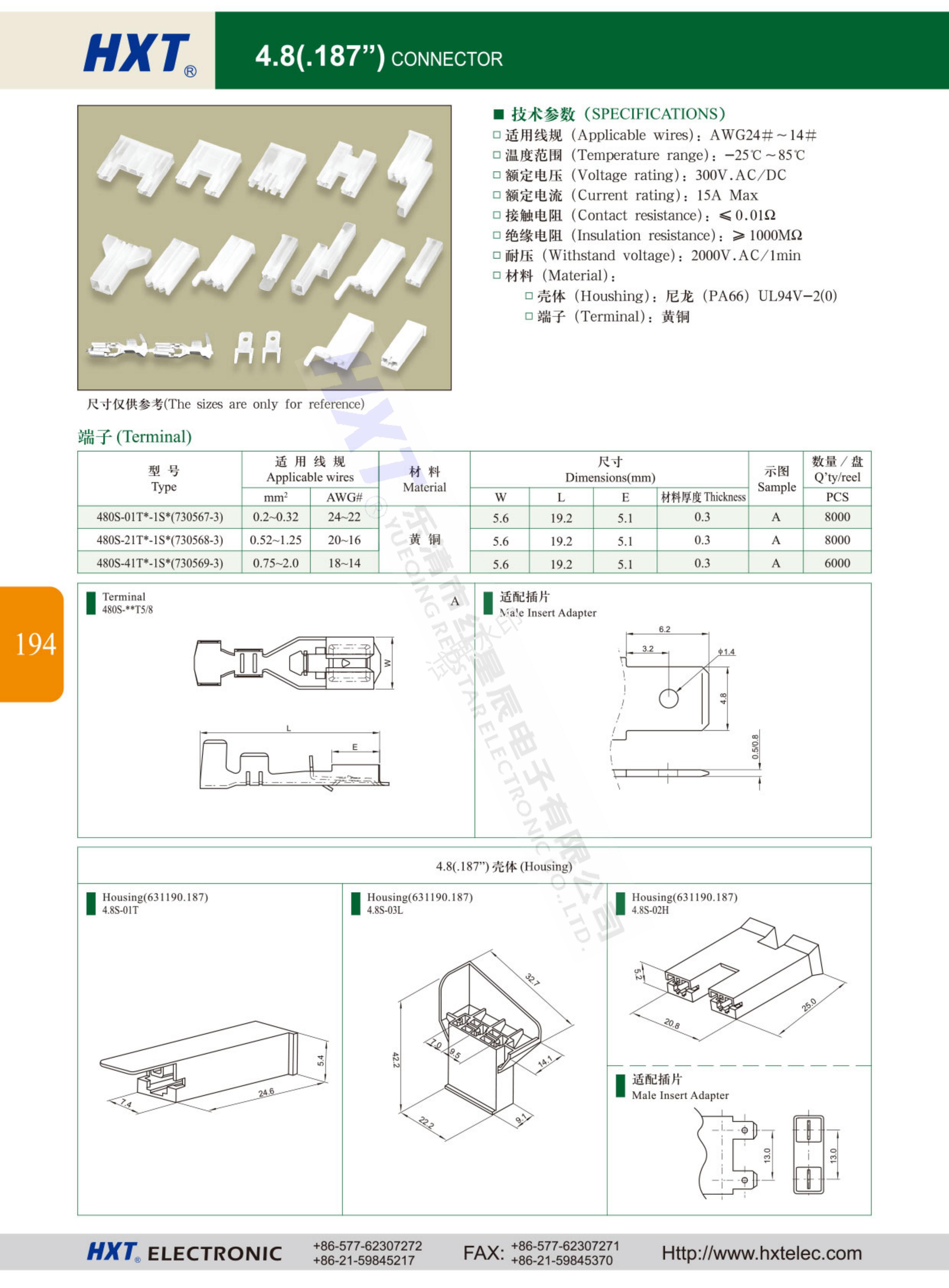

4.8（187）微波炉连接器

■技术参数(SPECIFICATIONS)

口适用线规(Applicable wires):AWG24#~14#

口温度范围(Temperature range):-25℃~85℃

口额定电压(Voltage rating):300V.AC/DC

口额定电流(Current rating):15A Max

口接触电阻(Contact resistance):≤0.01Ω

口绝缘电阻(Insulation resistance):≥1000MQ

口耐压(Withstand voltage):2000V.AC/1min

口材料(Material):

口壳体(Houshing):尼龙(PA66)UL94V-2(0)

口端子(Terminal):黄铜
