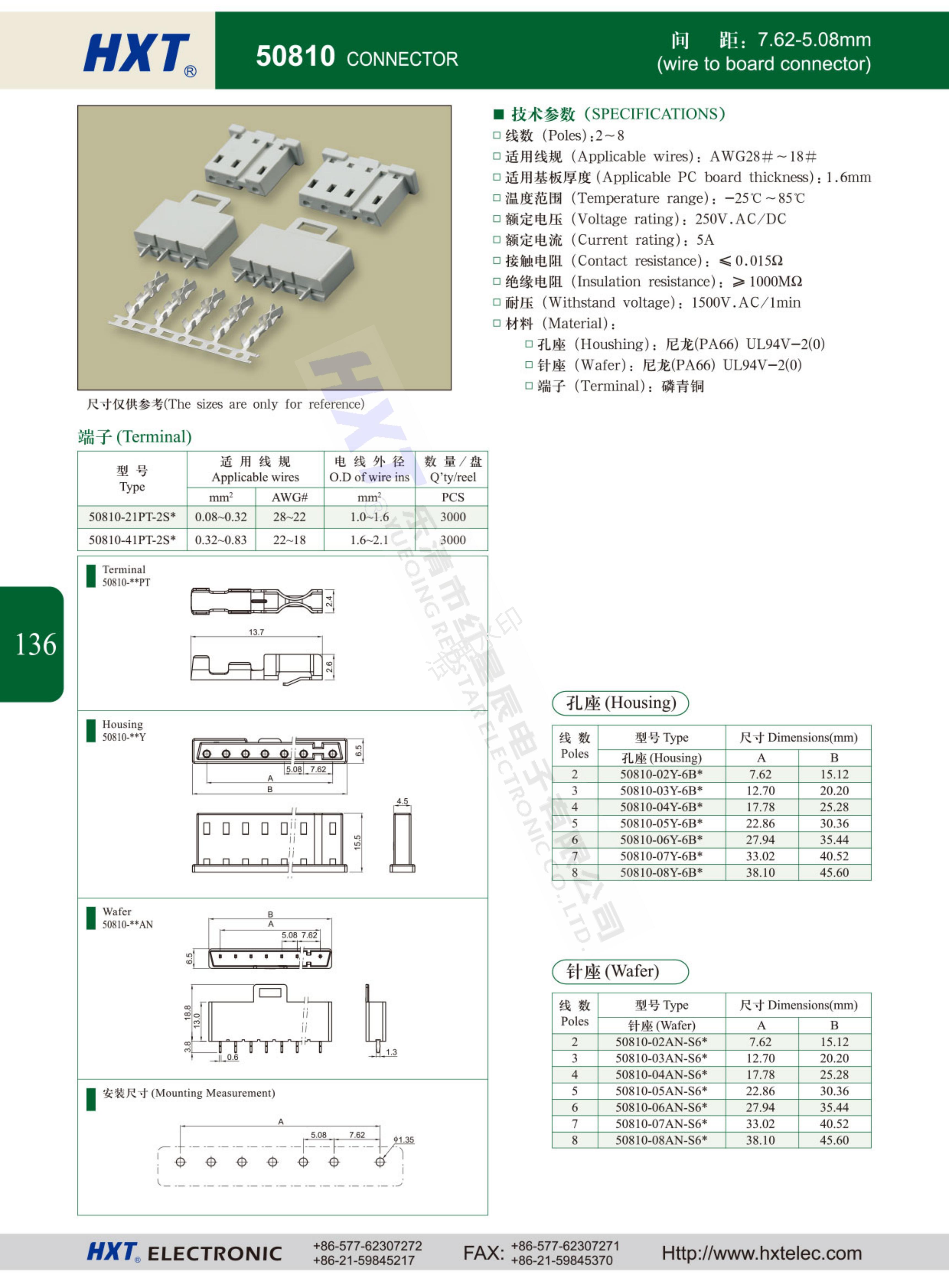

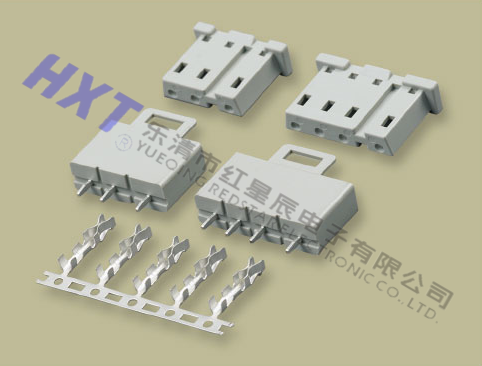

50810连接器

■技术参数(SPECIFICATIONS)

口线数(Poles):2~8

口适用线规(Applicable wires):AWG28#~18#

口适用基板厚度(Applicable PC board thickness):1.6mm

口温度范围(Temperature range):-25℃~85℃

口额定电压(Voltage rating):250V.AC/DC

口额定电流(Current rating):5A

口接触电阻(Contact resistance):≤0.015Ω

口绝缘电阻(Insulation resistance):≥1000MQ

口耐压(Withstand voltage):1500V.AC/1min

口材料(Material):

口孔座(Houshing):尼龙(PA66)UL94V-2(0)

口针座(Wafer):尼龙(PA66)UL94V-2(0)

口端子(Terminal):磷青铜
