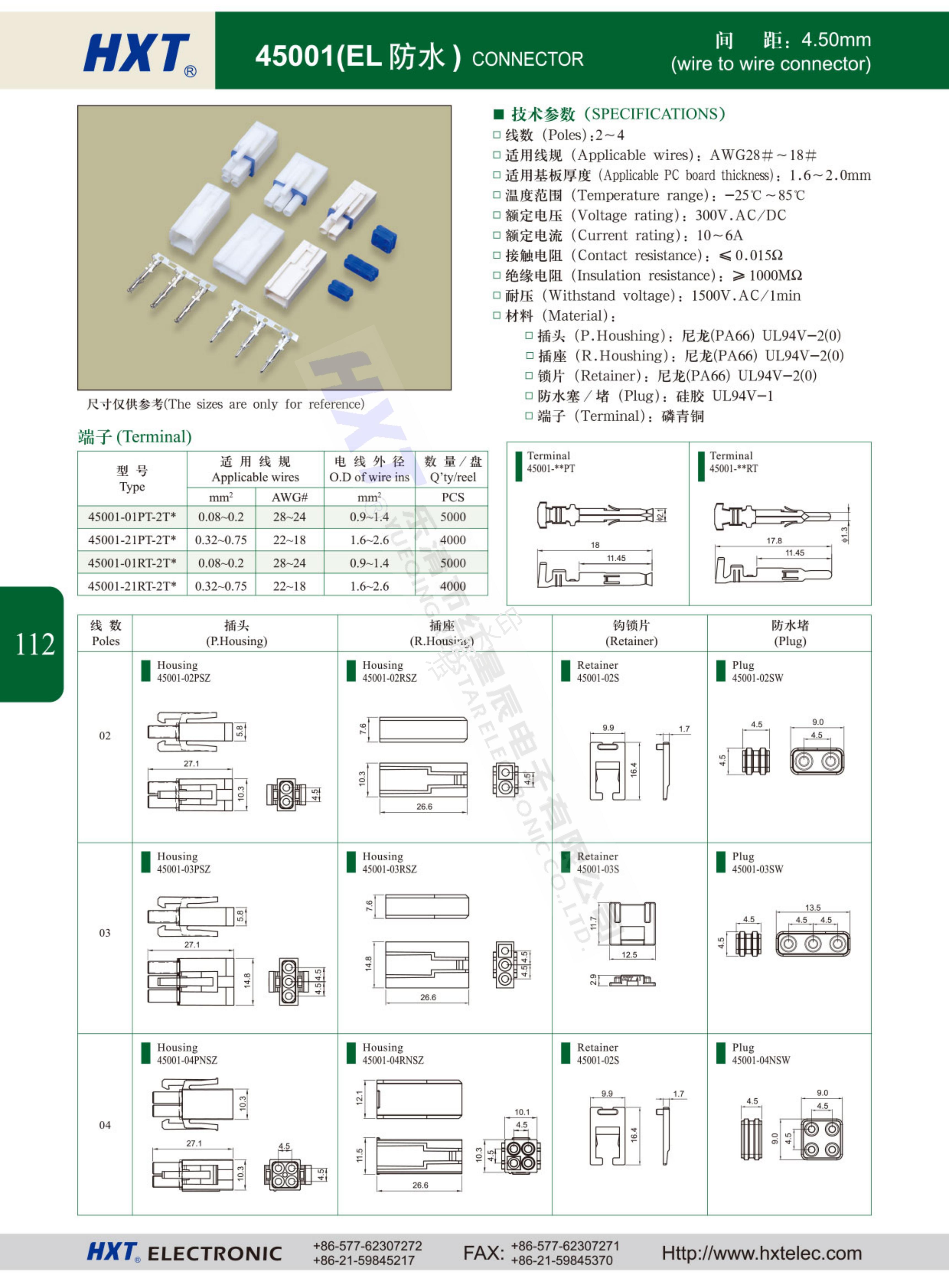

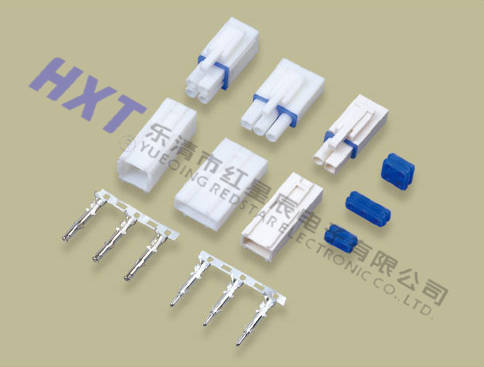

45001(EL 防水) 连接器

■技术参数(SPECIFICATIONS)

口线数(Poles):2~4

口适用线规(Applicable wires):AWG28#~18#

口适用基板厚度(Applicable PC board thickness):1.6~2.0mm

口温度范围(Temperature range):-25℃~85℃

口额定电压(Voltage rating):300V.AC/DC

口额定电流(Current rating):10~6A

口接触电阻(Contact resistance):≤0.015Ω

口绝缘电阻(Insulation resistance):≥1000MQ

口耐压(Withstand voltage):1500V.AC/1min

口材料(Material):

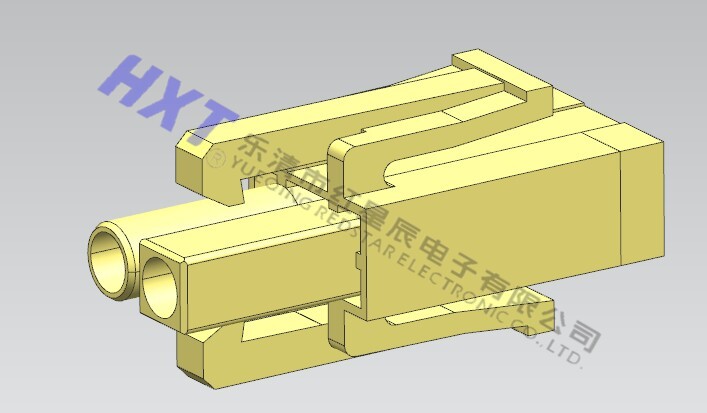

口插头(P.Houshing):尼龙(PA66)UL94V-2(0)

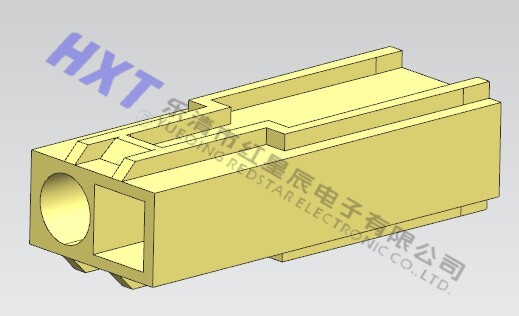

口插座(R.Houshing):尼龙(PA66)UL94V-2(0)

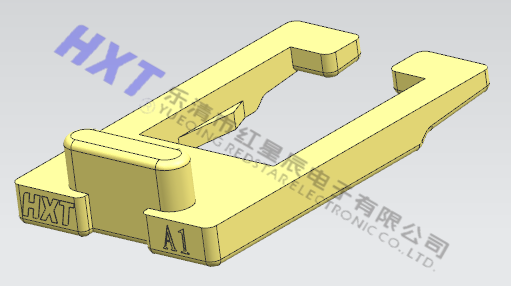

口锁片(Retainer):尼龙(PA66)UL94V-2(0)

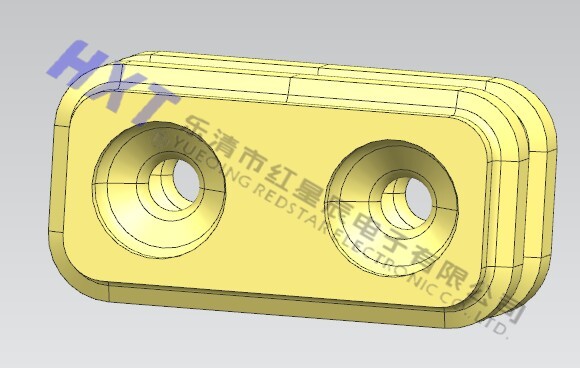

口防水塞/堵(Plug):硅胶UL94V-1

口端子(Terminal):磷青铜
