39603(HL)连接器

■技术参数(SPECIFICATIONS)

口线数(Poles):2、3、4、8、9、12

口适用线规(Applicable wires):AWG22#~18#

口温度范围(Temperature range):-25℃~85℃

口适用基板厚度(Applicable PC board thickness):0.7~2.0mm

口额定电压(Voltage rating):300V.AC/DC

口额定电流(Current rating):7A

口接触电阻(Contact resistance):≤0.018

口绝缘电阻(Insulation resistance):≥1000MΩ

口耐压(Withstand voltage):1500V.AC/1min

口材料(Material):

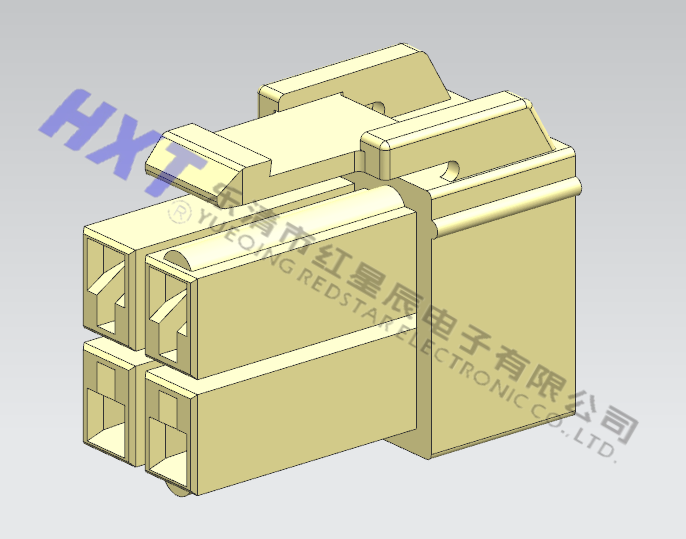

口插头(P.Houshing):尼龙(PA66)UL94V-2(0)

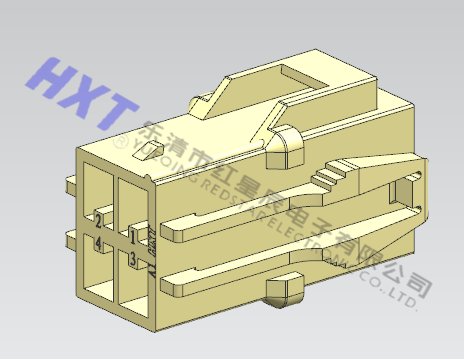

口插座(R.Houshing):尼龙(PA66)UL94V-2(0)

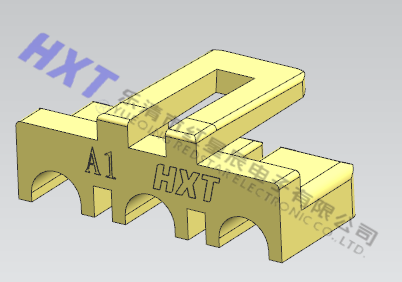

口锁片(Retainer):尼龙(PA66)UL94V-2(0)

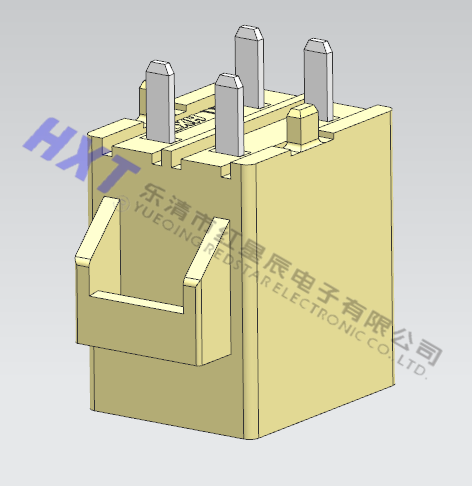

口针座(Wafer):尼龙(PA66)UL94V-0

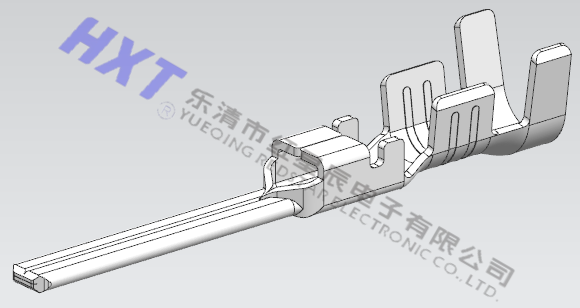

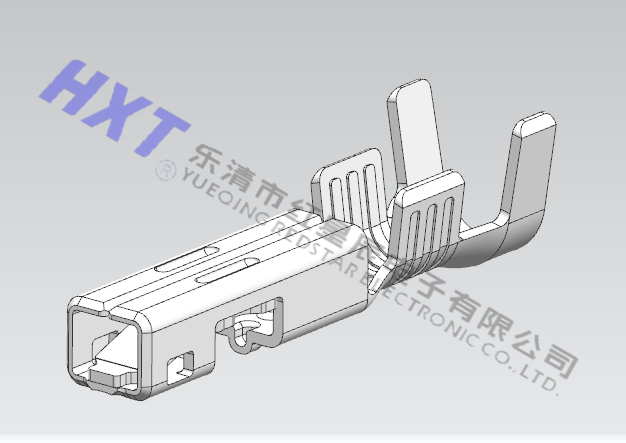

口端子(Terminal):磷青铜
