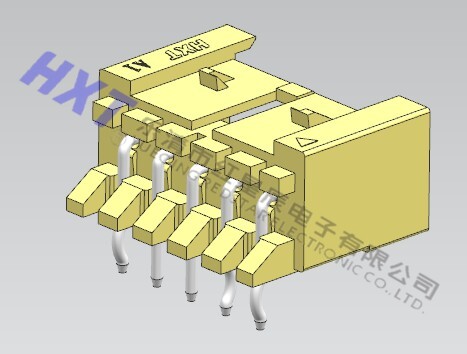

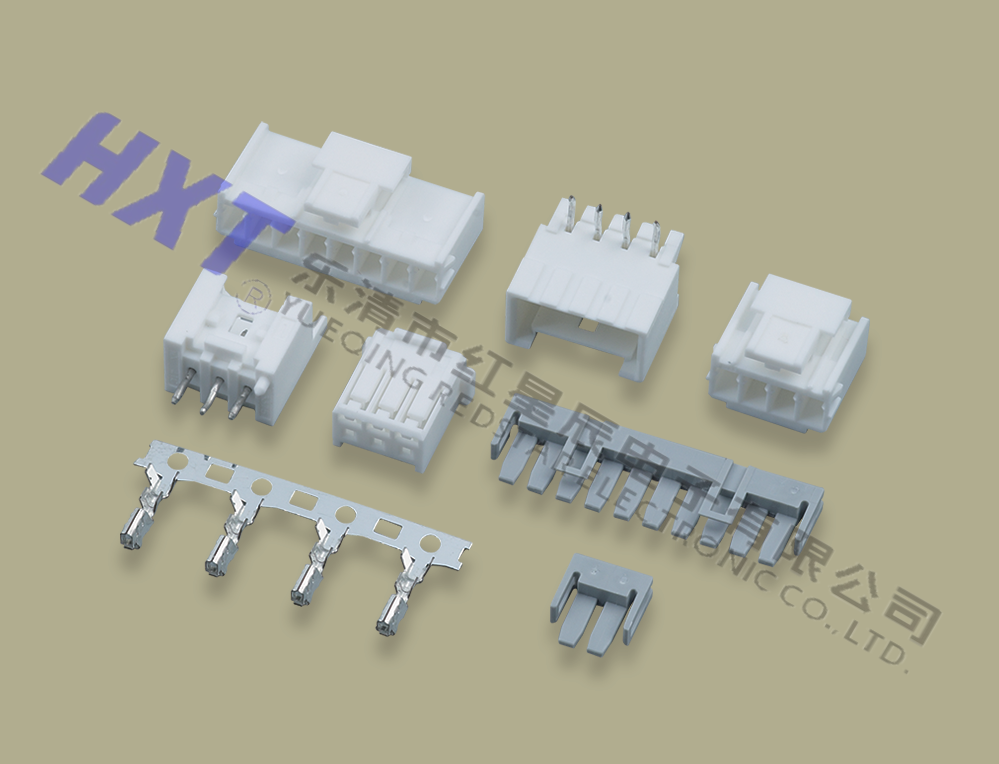

25101连接器

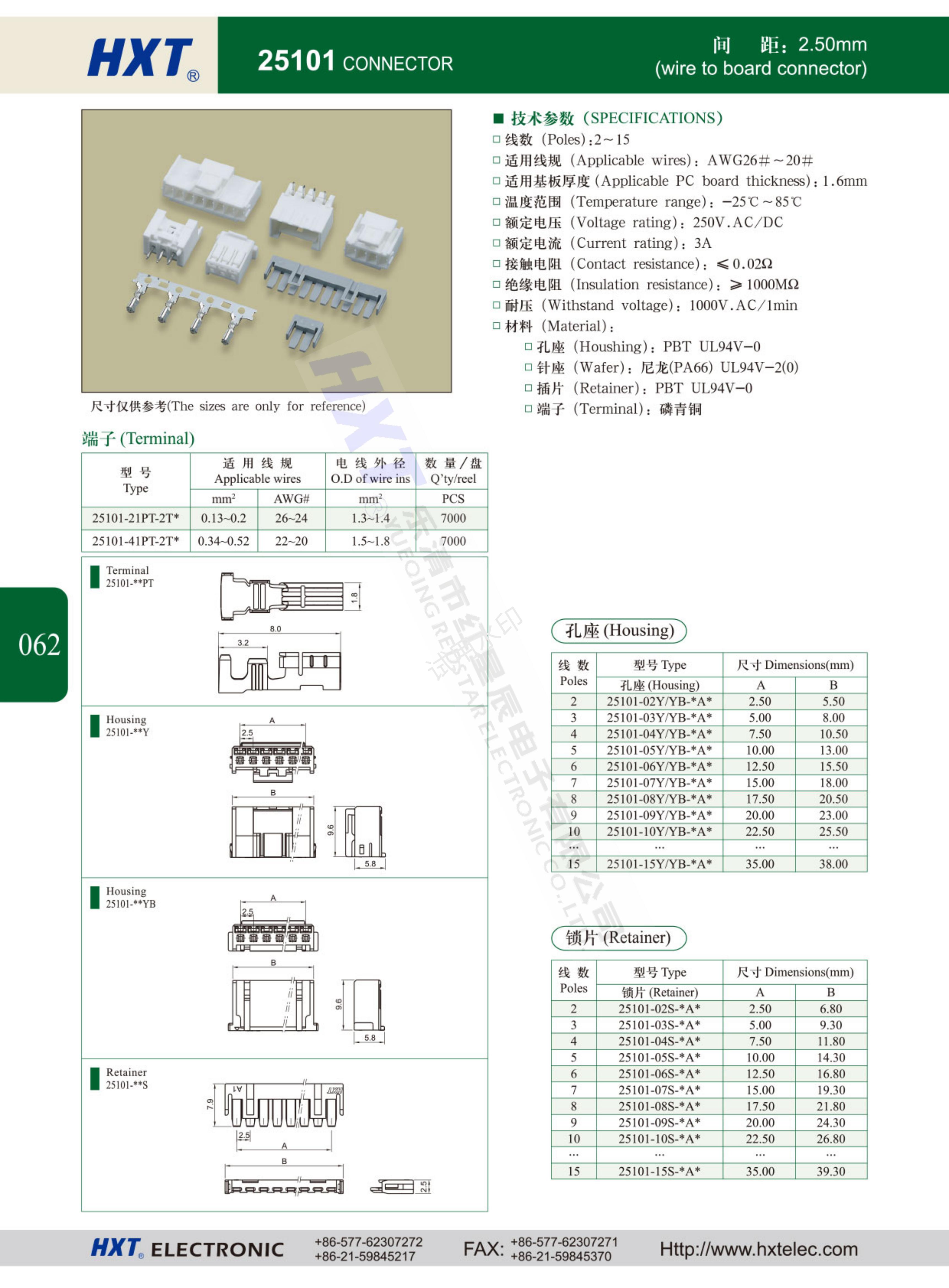

■技术参数(SPECIFICATIONS)

口线数(Poles):2~15

口适用线规(Applicable wires):AWG26#～20#

口适用基板厚度(Applicable PC board thickness):1.6mm

口温度范围(Temperature range):-25℃~85℃

口额定电压(Voltage rating):250V.AC/DC

口额定电流(Current rating):3A

口接触电阻(Contact resistance):≤0.022

口绝缘电阻(Insulation resistance):≥1000MΩ

口耐压(Withstand voltage):1000V.AC/1min

口材料(Material):

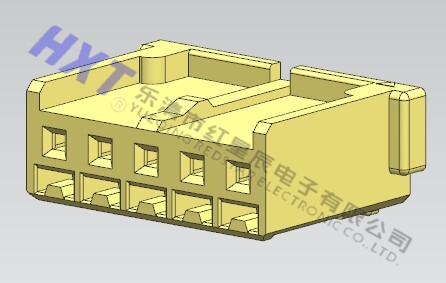

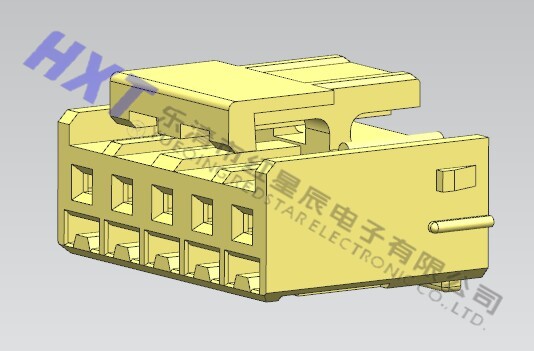

口孔座(Houshing):PBT UL94V-0

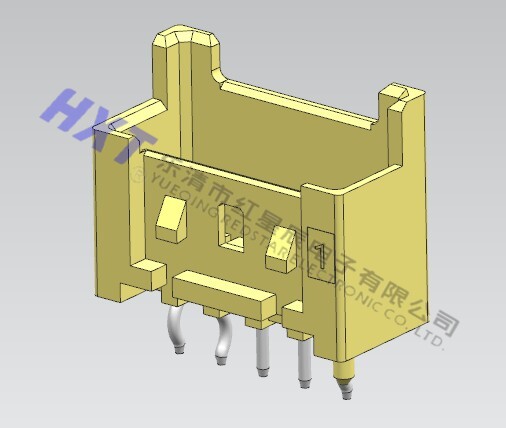

口针座(Wafer):尼龙(PA66)UL94V-2(0)

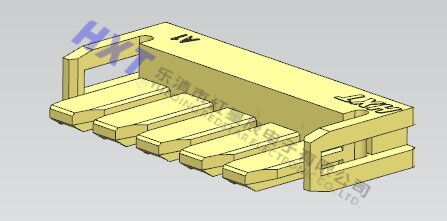

口插片(Retainer):PBT UL94V-0

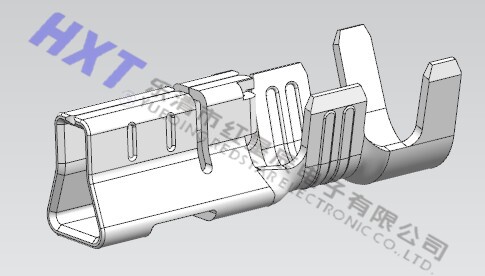

口端子(Terminal):磷青铜
