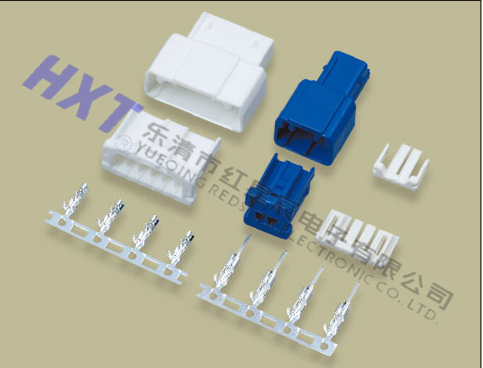

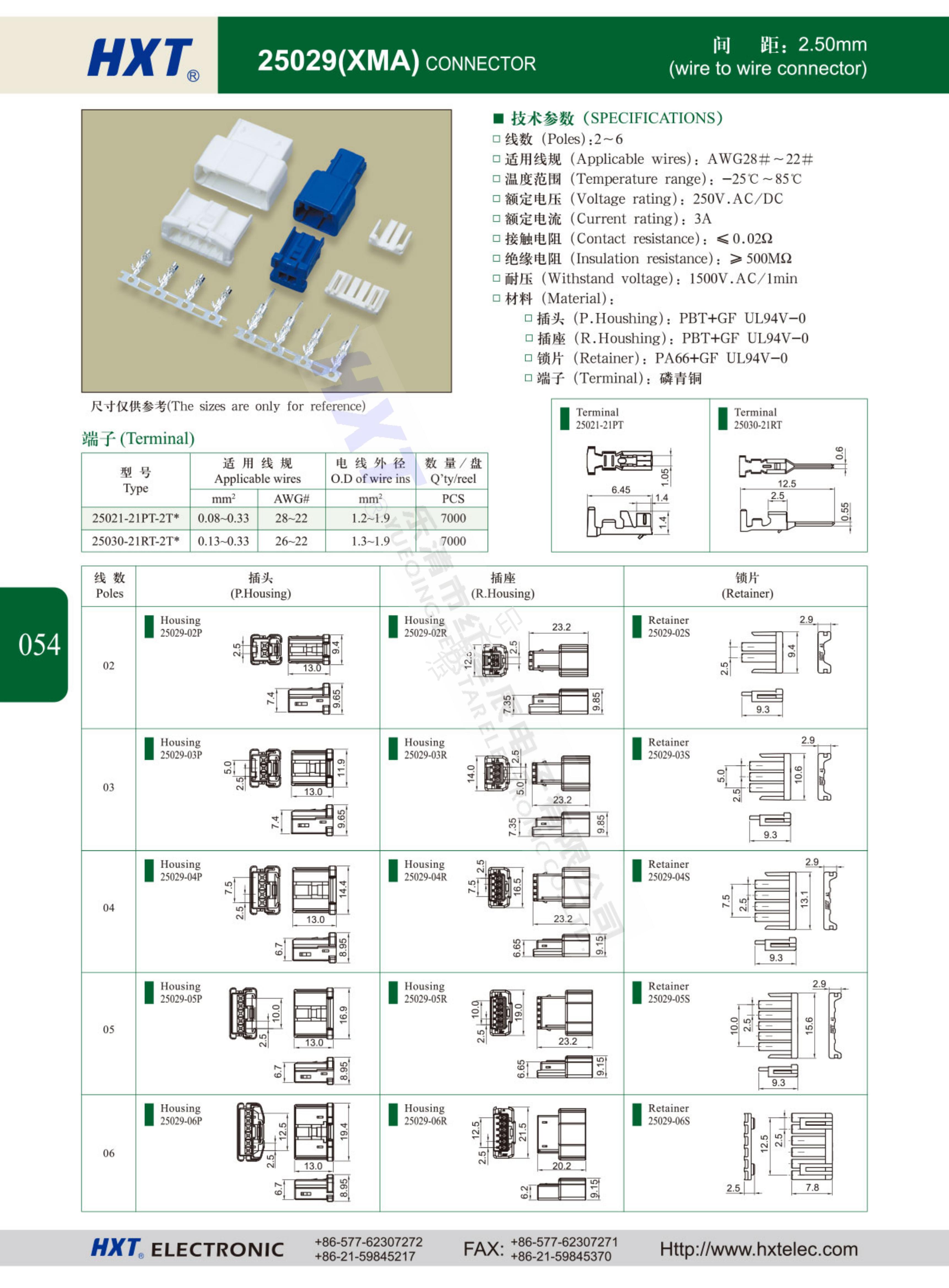

25029(XMA)连接器

■技术参数(SPECIFICATIONS)

口线数(Poles):2~6

口适用线规(Applicable wires):AWG28#~22#

口温度范围(Temperature range):-25℃~85℃

口额定电压(Voltage rating):250V.AC/DC

口额定电流(Current rating):3A

口接触电阻(Contact resistance):≤0.02Ω

口绝缘电阻(Insulation resistance):≥500MΩ

口耐压(Withstand voltage):1500V.AC/1min

口材料(Material):

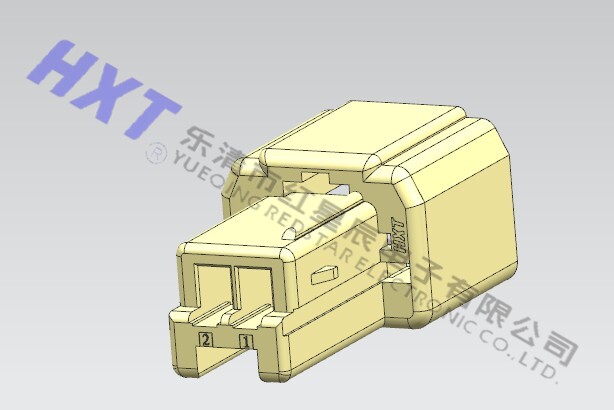

口插头(P.Houshing):PBT+GF UL94V-0

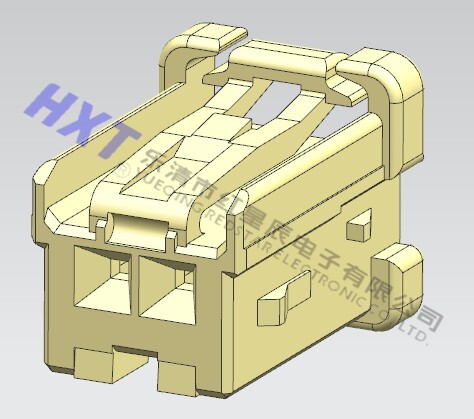

口插座(R.Houshing):PBT+GF UL94V-0

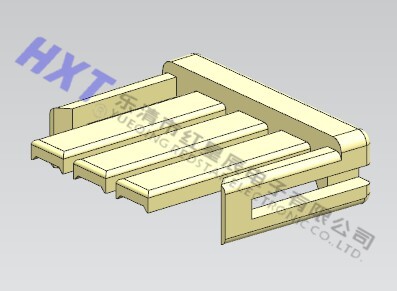

口锁片(Retainer):PA66+GF UL94V-0

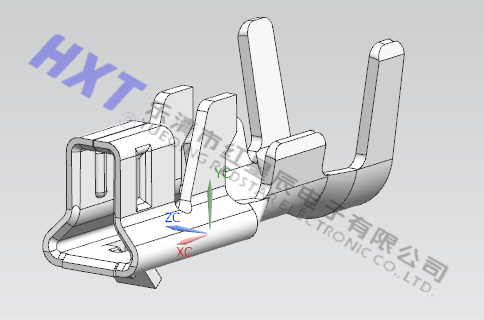

口端子(Terminal):磷青铜
