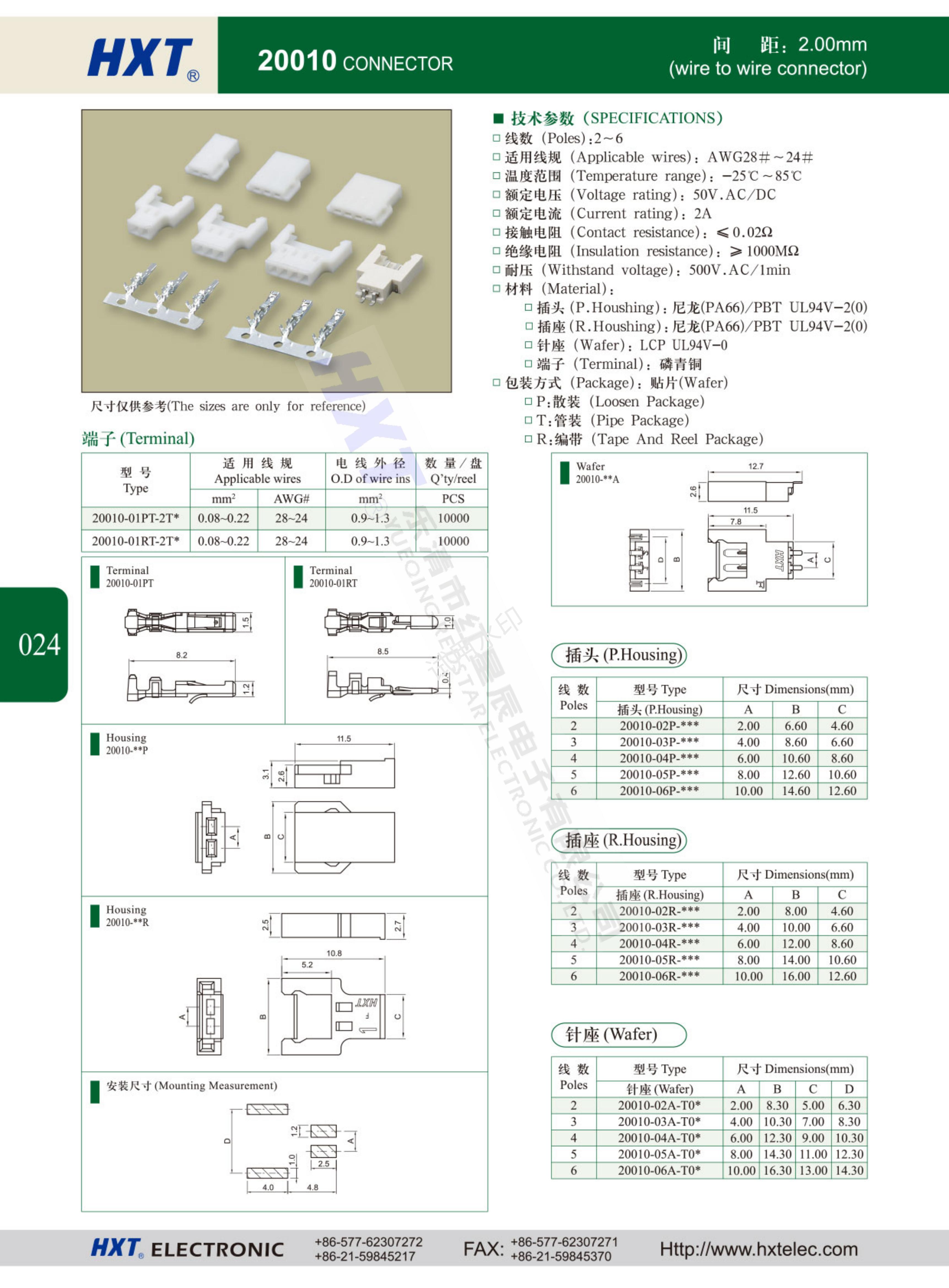

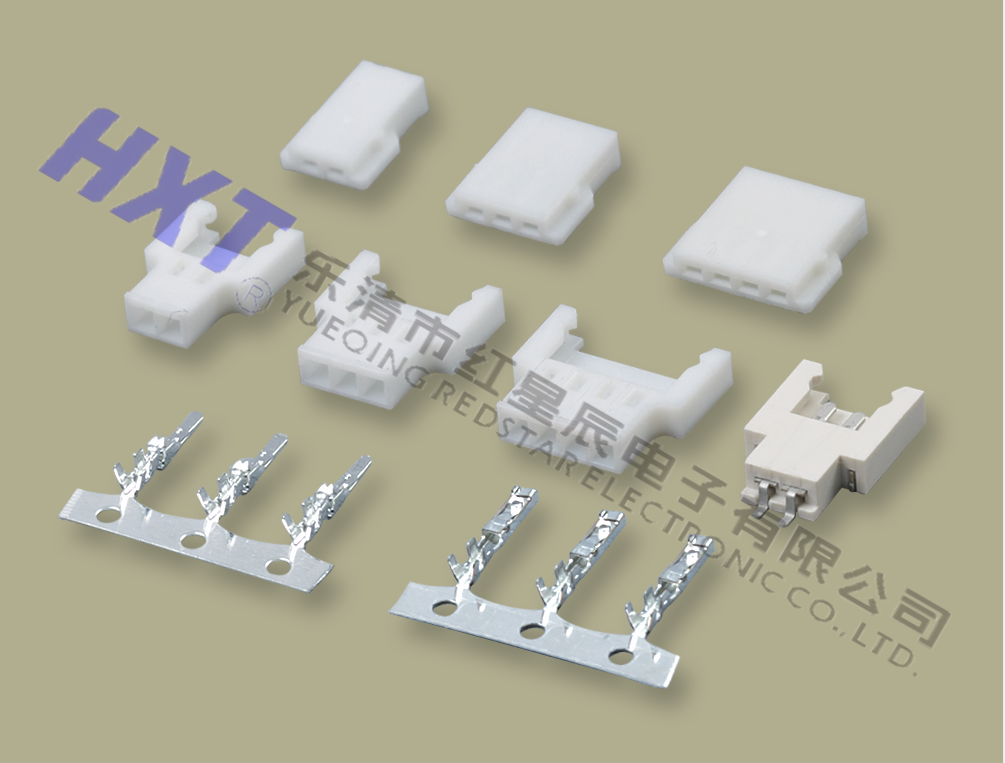

20010 连接器

■技术参数(SPECIFICATIONS)

口线数(Poles):2~6

口适用线规(Applicable wires):AWG28#~24#

口温度范围(Temperature range):-25℃~85℃

口额定电压(Voltage rating):50V.AC/DC

口额定电流(Current rating):2A

口接触电阻(Contact resistance):≤0.02Ω

口绝缘电阻(Insulation resistance):≥1000MΩ

口耐压(Withstand voltage):500V.AC/1min

口材料(Material):

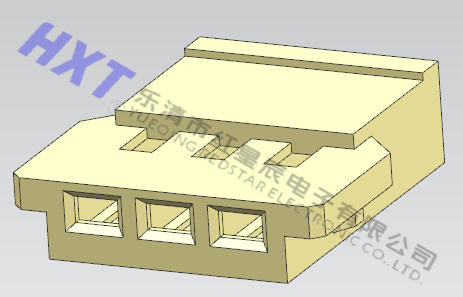

口插头(P.Houshing):尼龙(PA66)/PBT UL94V-2(0)

口插座(R.Houshing):尼龙(PA66)/PBT UL94V-2(0)

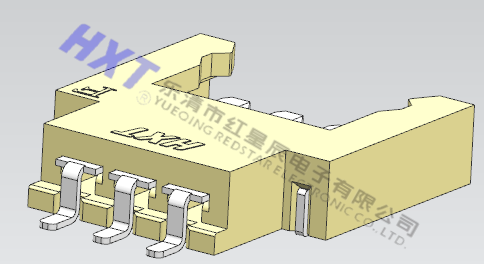

口针座(Wafer):LCP UL94V-0

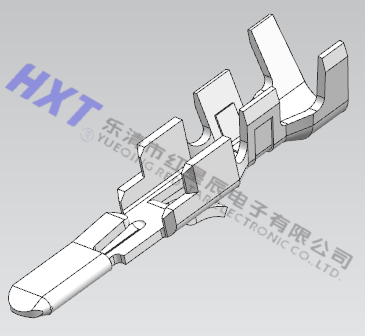

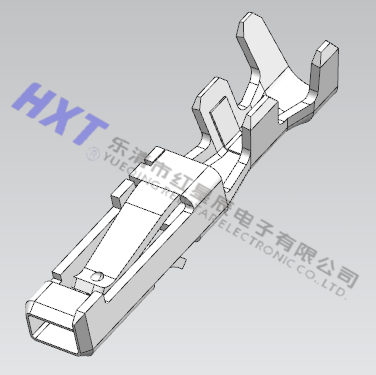

口端子(Terminal):磷青铜

口包装方式(Package):贴片(Wafer)

□P:散装(Loosen Package)

□T:管装(Pipe Package)

口R:编带(Tape And Reel Package)
