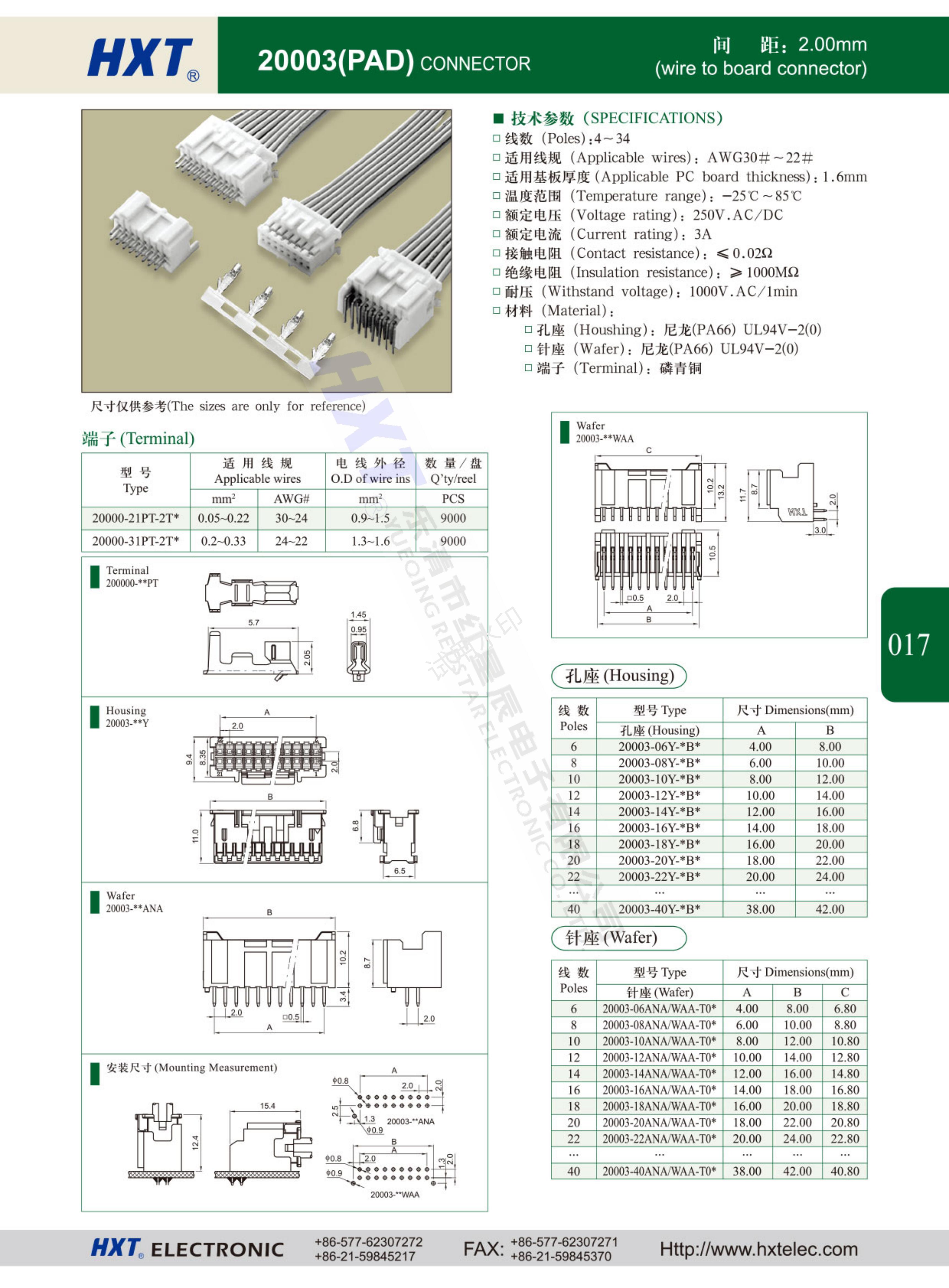

20003(PAD) 连接器

■技术参数(SPECIFICATIONS)

口线数(Poles):4~34

口适用线规(Applicable wires):AWG30#~22#

口适用基板厚度(Applicable PC board thickness):1.6mm

口温度范围(Temperature range):-25℃~85℃

口额定电压(Voltage rating):250V.AC/DC

口额定电流(Current rating):3A

口接触电阻(Contact resistance):≤0.02Ω

口绝缘电阻(Insulation resistance):≥1000MΩ

口耐压(Withstand voltage):1000V.AC/1min

口材料(Material):

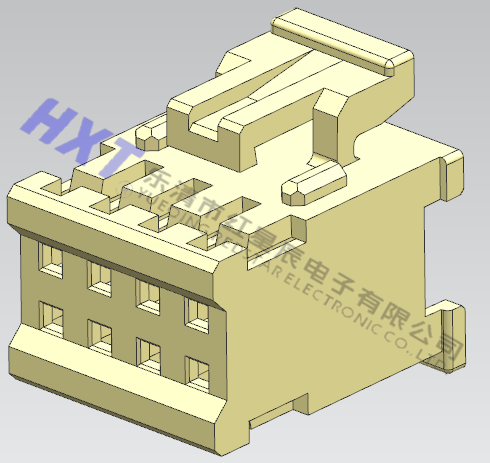

口孔座(Houshing):尼龙(PA66)UL94V-2(0)

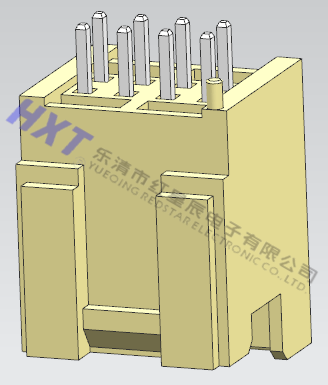

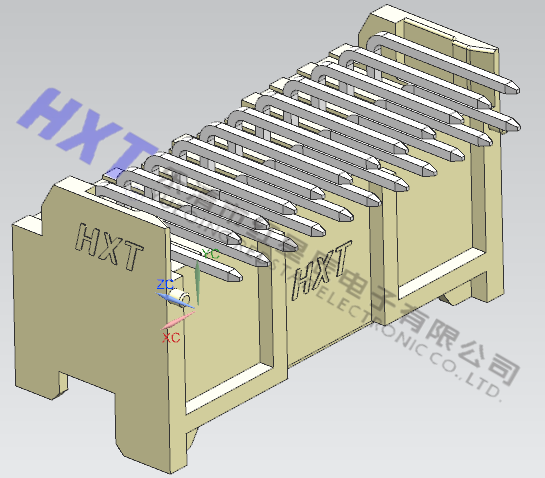

口针座(Wafer):尼龙(PA66)UL94V-2(0)

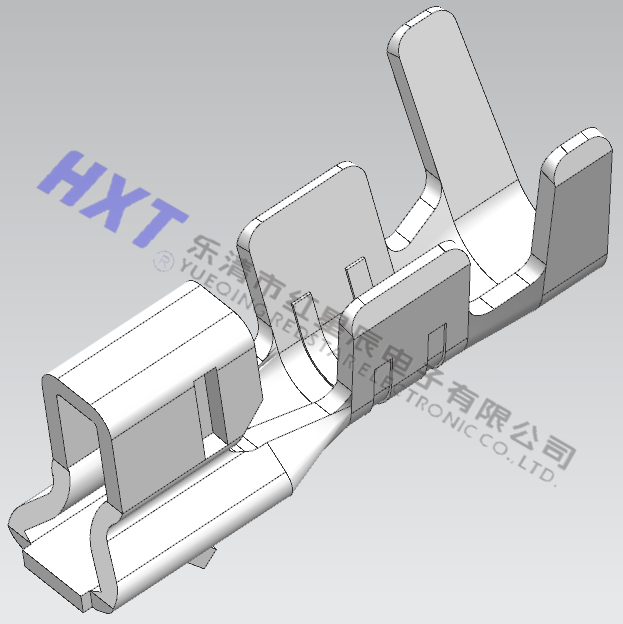

口端子(Terminal):磷青铜

20003-04Y-0B2 PADP-4V-1-S 20003-05Y-0B2 PADP-6V-1-S 20003-06Y-0B2 PADP-8V-1-S 20003-07Y-0B2 PADP-10V-1-S 20003-08Y-0B2 PADP-12V-1-S 20003-09Y-0B2 PADP-14V-1-S 20003-10Y-0B2 PADP-16V-1-S 20003-11Y-0B2 PADP-18V-1-S 20003-12Y-0B2 PADP-20V-1-S 20003-13Y-0B2 PADP-22V-1-S 20003-14Y-0B2 PADP-24V-1-S 20003-15Y-0B2 PADP-26V-1-S 20003-16Y-0B2 PADP-28V-1-S 20003-17Y-0B2 PADP-30V-1-S 20003-18Y-0B2 PADP-32V-1-S 20003-19Y-0B2 PADP-34V-1-S 20003-20Y-0B2 PADP-36V-1-S 20003-21Y-0B2 PADP-38V-1-S 20003-22Y-0B2 PADP-40V-1-S 20003-04ANA-T0P B4B-PADSS-1F 20003-06ANA-T0P B6B-PADSS-1F 20003-08ANA-T0P B8B-PADSS-1F 20003-10ANA-T0P B10B-PADSS-1F 20003-12ANA-T0P B12B-PADSS-1F 20003-14ANA-T0P B14B-PADSS-1F 20003-16ANA-T0P B16B-PADSS-1F 20003-18ANA-T0P B18B-PADSS-1F 20003-20ANA-T0P B20B-PADSS-1F 20003-22ANA-T0P B22B-PADSS-1F 20003-24ANA-T0P B24B-PADSS-1F 20003-26ANA-T0P B26B-PADSS-1F 20003-28ANA-T0P B28B-PADSS-1F 20003-30ANA-T0P B30B-PADSS-1F 20003-32ANA-T0P B32B-PADSS-1F 20003-34ANA-T0P B34B-PADSS-1F 20003-36ANA-T0P B36B-PADSS-1F 20003-38ANA-T0P B38B-PADSS-1F 20003-40ANA-T0P B40B-PADSS-1F 20003-04AN-T0P B4B-PADSS-F 20003-06AN-T0P B6B-PADSS-F 20003-08AN-T0P B8B-PADSS-F 20003-10AN-T0P B10B-PADSS-F 20003-12AN-T0P B12B-PADSS-F 20003-14AN-T0P B14B-PADSS-F 20003-16AN-T0P B16B-PADSS-F 20003-18AN-T0P B18B-PADSS-F 20003-20AN-T0P B20B-PADSS-F 20003-22AN-T0P B22B-PADSS-F 20003-24AN-T0P B24B-PADSS-F 20003-26AN-T0P B26B-PADSS-F 20003-28AN-T0P B28B-PADSS-F 20003-30AN-T0P B30B-PADSS-F 20003-32AN-T0P B32B-PADSS-F 20003-34AN-T0P B34B-PADSS-F 20003-36AN-T0P B36B-PADSS-F 20003-38AN-T0P B38B-PADSS-F 20003-40AN-T0P B40B-PADSS-F 20003-04WAA-T0P S4B-PADSS-1 20003-06WAA-T0P S6B-PADSS-1 20003-08WAA-T0P S8B-PADSS-1 20003-10WAA-T0P S10B-PADSS-1 20003-12WAA-T0P S12B-PADSS-1 20003-14WAA-T0P S14B-PADSS-1 20003-16WAA-T0P S16B-PADSS-1 20003-18WAA-T0P S18B-PADSS-1 20003-20WAA-T0P S20B-PADSS-1 20003-22WAA-T0P S22B-PADSS-1 20003-24WAA-T0P S24B-PADSS-1 20003-26WAA-T0P S26B-PADSS-1 20003-28WAA-T0P S28B-PADSS-1 20003-30WAA-T0P S30B-PADSS-1 20003-32WAA-T0P S32B-PADSS-1 20003-34WAA-T0P S34B-PADSS-1 20003-36WAA-T0P S36B-PADSS-1 20003-38WAA-T0P S38B-PADSS-1 20003-40WAA-T0P S40B-PADSS-1 JST
