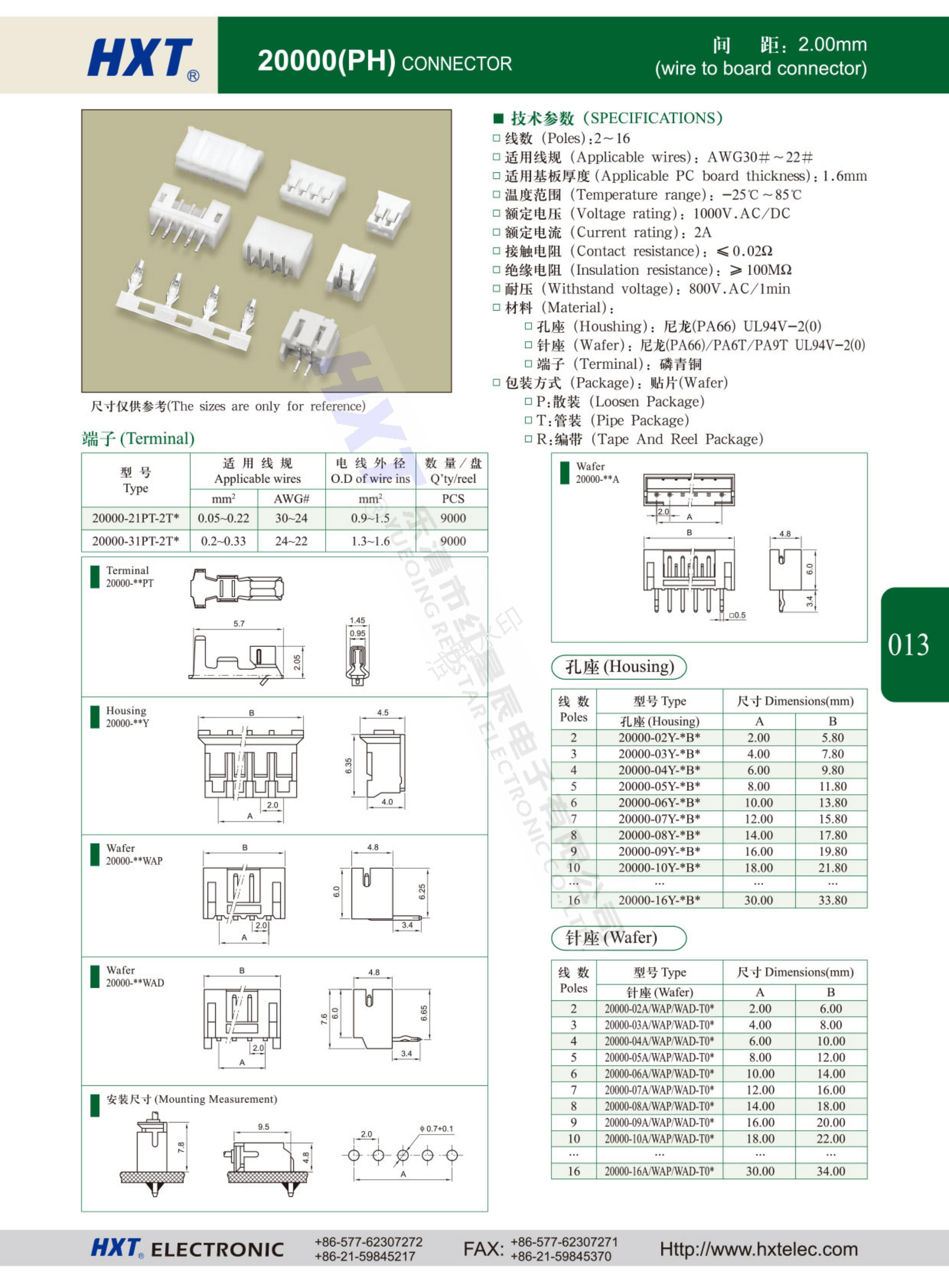

20000(PH) 连接器

■技术参数(SPECIFICATIONS)

口线数(Poles):2~16

口适用线规(Applicable wires):AWG30#~22#

口适用基板厚度(Applicable PC board thickness):1.6mm

口温度范围(Temperature range):-25℃~85℃

口额定电压(Voltage rating):1000V.AC/DC

口额定电流(Current rating):2A

口接触电阻(Contact resistance):≤0.02Ω

口绝缘电阻(Insulation resistance):≥100MΩ

口耐压(Withstand voltage):800V.AC/1min

口材料(Material):

口孔座(Houshing):尼龙(PA66)UL94V-2(0)

口针座(Wafer):尼龙(PA66)/PA6T/PA9T UL94V-2(0)

口端子(Terminal):磷青铜

口包装方式(Package):贴片(Wafer)

□P:散装(Loosen Package)

□T:管装(Pipe Package)

口R:编带(Tape And Reel Package)

20000-21PT-2T1 1735801-1 SPH-002T-P0.5S 20000-21PT-2T2 1735801-1 SPH-004T-P0.5S 20000-21PTA-2T1 20000-21PTA-2T2 20000-02Y-0B2 440129-2 PHR-2 20000-03Y-0B2 440129-3 PHR-3 20000-04Y-0B2 440129-4 PHR-4 20000-05Y-0B2 440129-5 PHR-5 20000-06Y-0B2 440129-6 PHR-6 20000-07Y-0B2 440129-7 PHR-7 20000-08Y-0B2 440129-8 PHR-8 20000-09Y-0B2 440129-9 PHR-9 20000-10Y-0B2 1-440129-0 PHR-10 20000-11Y-0B2 1-440129-1 PHR-11 20000-12Y-0B2 1-440129-2 PHR-12 20000-13Y-0B2 1-440129-3 PHR-13 20000-14Y-0B2 1-440129-4 PHR-14 20000-15Y-0B2 1-440129-5 PHR-15 20000-16Y-0B2 1-440129-6 PHR-16 20000-02A-T0P-B2 440054-2 B2B-PH-K-S 20000-03A-T0P-B2 440054-3 B3B-PH-K-S 20000-04A-T0P-B2 440054-4 B4B-PH-K-S 20000-05A-T0P-B2 440054-5 B5B-PH-K-S 20000-06A-T0P-B2 440054-6 B6B-PH-K-S 20000-07A-T0P-B2 440054-7 B7B-PH-K-S 20000-08A-T0P-B2 440054-8 B8B-PH-K-S 20000-09A-T0P-B2 440054-9 B9B-PH-K-S 20000-10A-T0P-B2 1-440054-0 B10B-PH-K-S 20000-11A-T0P-B2 1-440054-1 B11B-PH-K-S 20000-12A-T0P-B2 1-440054-2 B12B-PH-K-S 20000-13A-T0P-B2 1-440054-3 B13B-PH-K-S 20000-14A-T0P-B2 1-440054-4 B14B-PH-K-S 20000-15A-T0P-B2 1-440054-5 B15B-PH-K-S 20000-16A-T0P-B2 1-440054-6 B16B-PH-K-S 20000-02WAD-T0P-B2 440055-2 S2B-PH-K-S 20000-03WAD-T0P-B2 440055-3 S3B-PH-K-S 20000-04WAD-T0P-B2 440055-4 S4B-PH-K-S 20000-05WAD-T0P-B2 440055-5 S5B-PH-K-S 20000-06WAD-T0P-B2 440055-6 S6B-PH-K-S 20000-07WAD-T0P-B2 440055-7 S7B-PH-K-S 20000-08WAD-T0P-B2 440055-8 S8B-PH-K-S 20000-09WAD-T0P-B2 440055-9 S9B-PH-K-S 20000-10WAD-T0P-B2 1-440055-0 S10B-PH-K-S 20000-11WAD-T0P-B2 1-440055-1 S11B-PH-K-S 20000-12WAD-T0P-B2 1-440055-2 S12B-PH-K-S 20000-13WAD-T0P-B2 1-440055-3 S13B-PH-K-S 20000-14WAD-T0P-B2 1-440055-4 S14B-PH-K-S 20000-15WAD-T0P-B2 1-440055-5 S15B-PH-K-S 20000-16WAD-T0P-B2 1-440055-6 S16B-PH-K-S 20000-02WAP-T0P-B2 20000-03WAP-T0P-B2 20000-04WAP-T0P-B2 20000-05WAP-T0P-B2 20000-06WAP-T0P-B2 20000-07WAP-T0P-B2 20000-08WAP-T0P-B2 20000-09WAP-T0P-B2 20000-10WAP-T0P-B2 20000-11WAP-T0P-B2 20000-12WAP-T0P-B2 20000-13WAP-T0P-B2 20000-14WAP-T0P-B2 20000-15WAP-T0P-B2 20000-16WAP-T0P-B2 HX20007-2AB-3 1775470-2 B2B-PH-SM4-TB HX20007-3AB-3 1775470-3 B3B-PH-SM4-TB HX20007-4AB-3 1775470-4 B4B-PH-SM4-TB HX20007-5AB-3 1775470-5 B5B-PH-SM4-TB HX20007-6AB-3 1775470-6 B6B-PH-SM4-TB HX20007-7AB-3 1775470-7 B7B-PH-SM4-TB HX20007-8AB-3 1775470-8 B8B-PH-SM4-TB HX20007-9AB-3 1775470-9 B9B-PH-SM4-TB HX20007-10AB-3 1-1775470-0 B10B-PH-SM4-TB HX20007-11AB-3 1-1775470-1 B11B-PH-SM4-TB HX20007-12AB-3 1-1775470-2 B12B-PH-SM4-TB HX20007-13AB-3 1-1775470-3 B13B-PH-SM4-TB HX20007-14AB-3 1-1775470-4 B14B-PH-SM4-TB HX20007-15AB-3 1-1775470-5 B15B-PH-SM4-TB HX20007-16AB-3 1-1775470-6 B16B-PH-SM4-TB HX20007-2AWB-3 1734827-2 S2B-PH-SM4-TB HX20007-3AWB-3 1734827-3 S3B-PH-SM4-TB HX20007-4AWB-3 1734827-4 S4B-PH-SM4-TB HX20007-5AWB-3 1734827-5 S5B-PH-SM4-TB HX20007-6AWB-3 1734827-6 S6B-PH-SM4-TB HX20007-7AWB-3 1734827-7 S7B-PH-SM4-TB HX20007-8AWB-3 1734827-8 S8B-PH-SM4-TB HX20007-9AWB-3 1734827-9 S9B-PH-SM4-TB HX20007-10AWB-3 1-1734827-0 S10B-PH-SM4-TB HX20007-11AWB-3 1-1734827-1 S11B-PH-SM4-TB HX20007-12AWB-3 1-1734827-2 S12B-PH-SM4-TB HX20007-13AWB-3 1-1734827-3 S13B-PH-SM4-TB HX20007-14AWB-3 1-1734827-4 S14B-PH-SM4-TB HX20007-15AWB-3 1-1734827-5 S15B-PH-SM4-TB HX20007-16AWB-3 1-1734827-6 HX20007-2BH BH2B-PH HX20007-3BH BH3B-PH HX20007-4BH BH4B-PH HX20007-5BH BH5B-PH HX20007-6BH BH6B-PH HX20007-7BH BH7B-PH HX20007-8BH BH8B-PH HX20007-9BH BH9B-PH HX20007-10BH BH10B-PH HX20007-11BH BH11B-PH HX20007-12BH BH12B-PH HX20007-13BH BH13B-PH 2-440129-2 SPH-002T-P0.5L 2-440129-3 B2B-PH-KL 2-440129-4 B3B-PH-KL 2-440129-5 B4B-PH-KL 2-440129-8 B5B-PH-KL 2-440129-9 B6B-PH-KL 4-440129-2 B7B-PH-KL 4-440129-3 B8B-PH-KL 4-440129-4 B9B-PH-KL 4-440129-5 B10B-PH-KL 4-440129-6 B11B-PH-KL 4-440129-7 B12B-PH-KL 4-440129-8 B13B-PH-KL 4-440129-9 B14B-PH-KL 5-440129-0 B15B-PH-KL 5-440129-1 B16B-PH-KL 5-440129-2 S2B-PH-KL 6-440129-2 S3B-PH-KL 6-440129-3 S4B-PH-KL 6-440129-4 S5B-PH-KL 6-440129-5 S6B-PH-KL 8-440129-1 S7B-PH-KL 8-440129-2 S8B-PH-KL 8-440129-3 S9B-PH-KL 8-440129-4 S10B-PH-KL 8-440129-5 S11B-PH-KL 8-440129-8 S12B-PH-KL 9-440129-1 S13B-PH-KL 9-440129-3 S14B-PH-KL 9-440129-4 S15B-PH-KL 9-440129-5 S16B-PH-KL 7-440129-5 9-440054-0 2-440054-2 2-440054-3 2-440054-4 2-440054-5 4-440054-2 4-440054-3 4-440054-4 4-440054-5 7-440054-0 7-440054-1 7-440054-2 7-440054-3 7-440054-4 7-440054-5 7-440054-6 6-440054-2 6-440054-3 6-440054-4 6-440054-5 8-440054-0 8-440054-4 8-440054-5 2-440054-0 2-440054-1 440054-1 3-440054-1 9-440054-3 9-440054-6 9-440054-7 4-440054-1 3-440054-2 3-440054-3 3-440054-4 3-440054-5 3-440054-6 3-440054-7 3-440054-8 3-440054-9 5-440054-0 5-440054-1 5-440054-2 5-440054-3 5-440054-4 5-440054-5 5-440054-6 2-440054-6 2-440054-7 2-440054-8 2-440054-9 4-440054-6 4-440054-7 4-440054-8 4-440054-9 6-440054-6 6-440054-7 6-440054-8 6-440054-9 2-440055-2 2-440055-3 2-440055-4 2-440055-5 4-440055-2 4-440055-3 4-440055-4 4-440055-5 4-440055-6 4-440055-7 4-440055-8 4-440055-9 5-440055-0 5-440055-1 5-440055-2 6-440055-2 6-440055-3 6-440055-4 6-440055-5 8-440055-2 8-440055-3 8-440055-4 8-440055-5 8-440055-8 9-440055-2 9-440055-4 2-1775470-2 2-1775470-3 2-1775470-4 2-1775470-5 2-1775470-6 2-1775470-7 2-1775470-8 2-1775470-9 3-1775470-0 3-1775470-1 3-1775470-2 3-1775470-3 3-1775470-4 3-1775470-5 3-1775470-6 1775469-2 1775469-3 1775469-4 1775469-5 1775469-6 1775469-7 1775469-8 1775469-9 1-1775469-0 1-1775469-1 1-1775469-2 1-1775469-3 1-1775469-4 1-1775469-5 1-1775469-6 2-1775469-2 2-1775469-3 2-1775469-4 2-1775469-5 2-1775469-6 2-1775469-7 2-1775469-8 2-1775469-9 3-1775469-0 3-1775469-1 3-1775469-2 3-1775469-3 3-1775469-4 3-1775469-5 3-1775469-6 TE AMP High Performance Interconnect (HPI) Connectors JST EMBOSS TAPE
