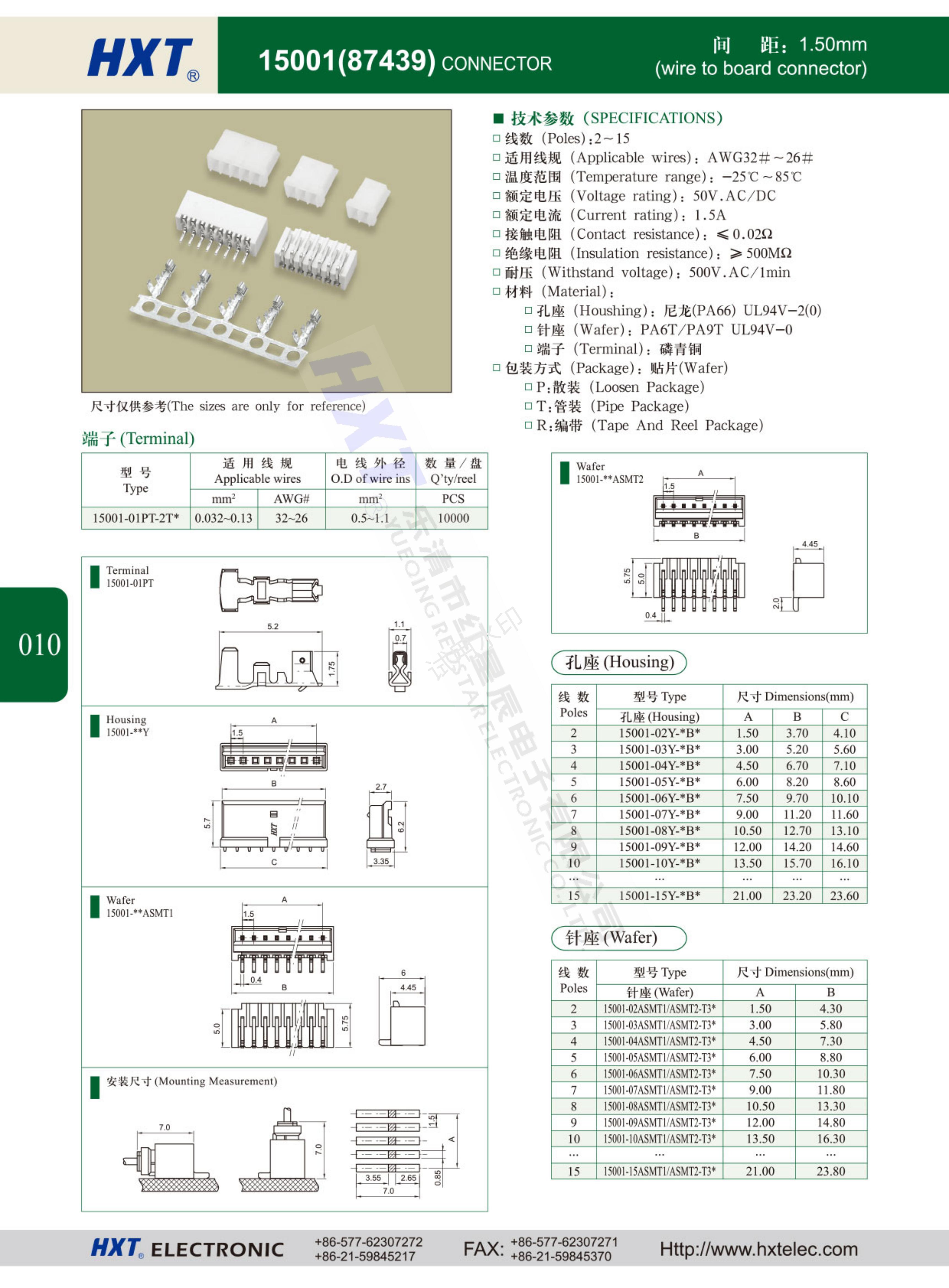

15001(87439) 连接器

■技术参数(SPECIFICATIONS)

口线数(Poles):2~15

口适用线规(Applicable wires):AWG32#~26#

口温度范围(Temperature range):-25℃~85℃

口额定电压(Voltage rating):50V.AC/DC

口额定电流(Current rating):1.5A

口接触电阻(Contact resistance):≤0.02Ω

口绝缘电阻(Insulation resistance):≥500MQ

口耐压(Withstand voltage):500V.AC/1min

口材料(Material):

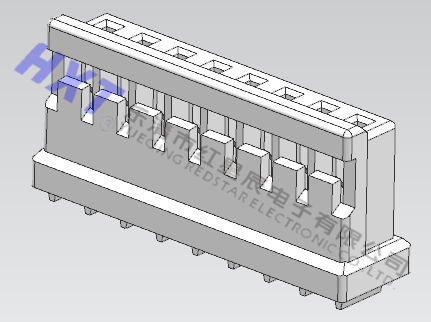

口孔座(Houshing):尼龙(PA66)UL94V-2(0)

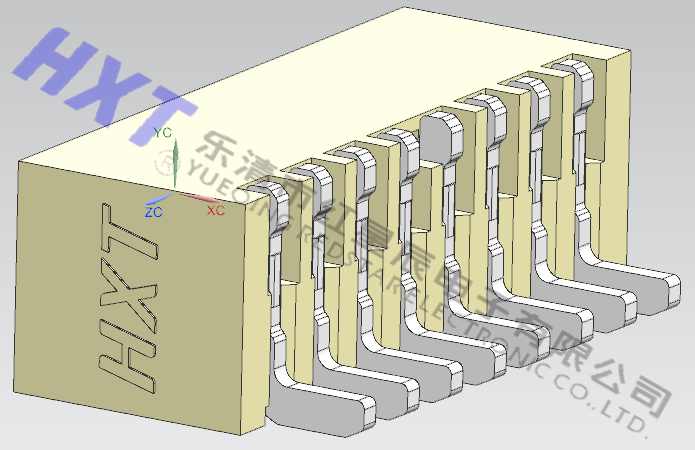

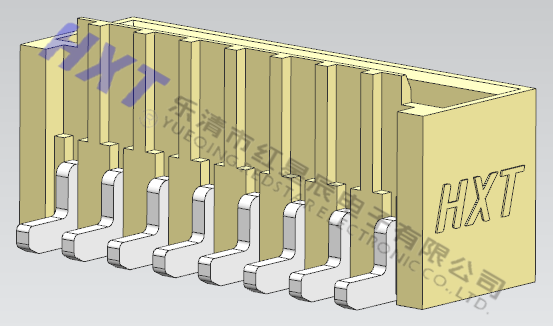

口针座(Wafer):PA6T/PA9T UL94V-0

口端子(Terminal):磷青铜

口包装方式(Package):贴片(Wafer)

口P:散装(Loosen Package)

口T:管装(Pipe Package)

□R:编带(Tape And Reel Package)

15001-01PT-2T1 1775542-1 15001-01PT-2T2 1775542-1 15001-02Y-0B2 1775441-2 15001-03Y-0B2 1775441-3 15001-04Y-0B2 1775441-4 15001-05Y-0B2 1775441-5 15001-06Y-0B2 1775441-6 15001-07Y-0B2 1775441-7 15001-08Y-0B2 1775441-8 15001-09Y-0B2 1775441-9 15001-10Y-0B2 1-1775441-0 15001-11Y-0B2 1-1775441-1 15001-12Y-0B2 1-1775441-2 15001-13Y-0B2 1-1775441-3 15001-14Y-0B2 1-1775441-4 15001-15Y-0B2 1-1775441-5 15001-2ASMT-T3R 5-1775443-2 15001-3ASMT-T3R 5-1775443-3 15001-4ASMT-T3R 5-1775443-4 15001-5ASMT-T3R 5-1775443-5 15001-6ASMT-T3R 5-1775443-6 15001-7ASMT-T3R 5-1775443-7 15001-8ASMT-T3R 5-1775443-8 15001-9ASMT-T3R 5-1775443-9 15001-10ASMT-T3R 6-1775443-0 15001-11ASMT-T3R 6-1775443-1 15001-12ASMT-T3R 6-1775443-2 15001-13ASMT-T3R 6-1775443-3 15001-14ASMT-T3R 6-1775443-4 15001-15ASMT-T3R 6-1775443-5 15001-2WASMT-T3R 5-1775444-2 15001-3WASMT-T3R 5-1775444-3 15001-4WASMT-T3R 5-1775444-4 15001-5WASMT-T3R 5-1775444-5 15001-6WASMT-T3R 5-1775444-6 15001-7WASMT-T3R 5-1775444-7 15001-8WASMT-T3R 5-1775444-8 15001-9WASMT-T3R 5-1775444-9 15001-10WASMT-T3R 6-1775444-0 15001-11WASMT-T3R 6-1775444-1 15001-12WASMT-T3R 6-1775444-2 15001-13WASMT-T3R 6-1775444-3 15001-14WASMT-T3R 6-1775444-4 15001-15WASMT-T3R 6-1775444-5 15001-2ASMT-T3T 1775443-2 15001-3ASMT-T3T 1775443-3 15001-4ASMT-T3T 1775443-4 15001-5ASMT-T3T 1775443-5 15001-6ASMT-T3T 1775443-6 15001-7ASMT-T3T 1775443-7 15001-8ASMT-T3T 1775443-8 15001-9ASMT-T3T 1775443-9 15001-10ASMT-T3T 1-1775443-0 15001-11ASMT-T3T 1-1775443-1 15001-12ASMT-T3T 1-1775443-2 15001-13ASMT-T3T 1-1775443-3 15001-14ASMT-T3T 1-1775443-4 15001-15ASMT-T3T 1-1775443-5 15001-2WASMT-T3T 1775444-2 15001-3WASMT-T3T 1775444-3 15001-4WASMT-T3T 1775444-4 15001-5WASMT-T3T 1775444-5 15001-6WASMT-T3T 1775444-6 15001-7WASMT-T3T 1775444-7 15001-8WASMT-T3T 1775444-8 15001-9WASMT-T3T 1775444-9 15001-10WASMT-T3T 1-1775444-0 15001-11WASMT-T3T 1-1775444-1 15001-12WASMT-T3T 1-1775444-2 15001-13WASMT-T3T 1-1775444-3 15001-14WASMT-T3T 1-1775444-4 15001-15WASMT-T3T 1-1775444-5 TE AMP High Performance Interconnect (HPI) Connectors
