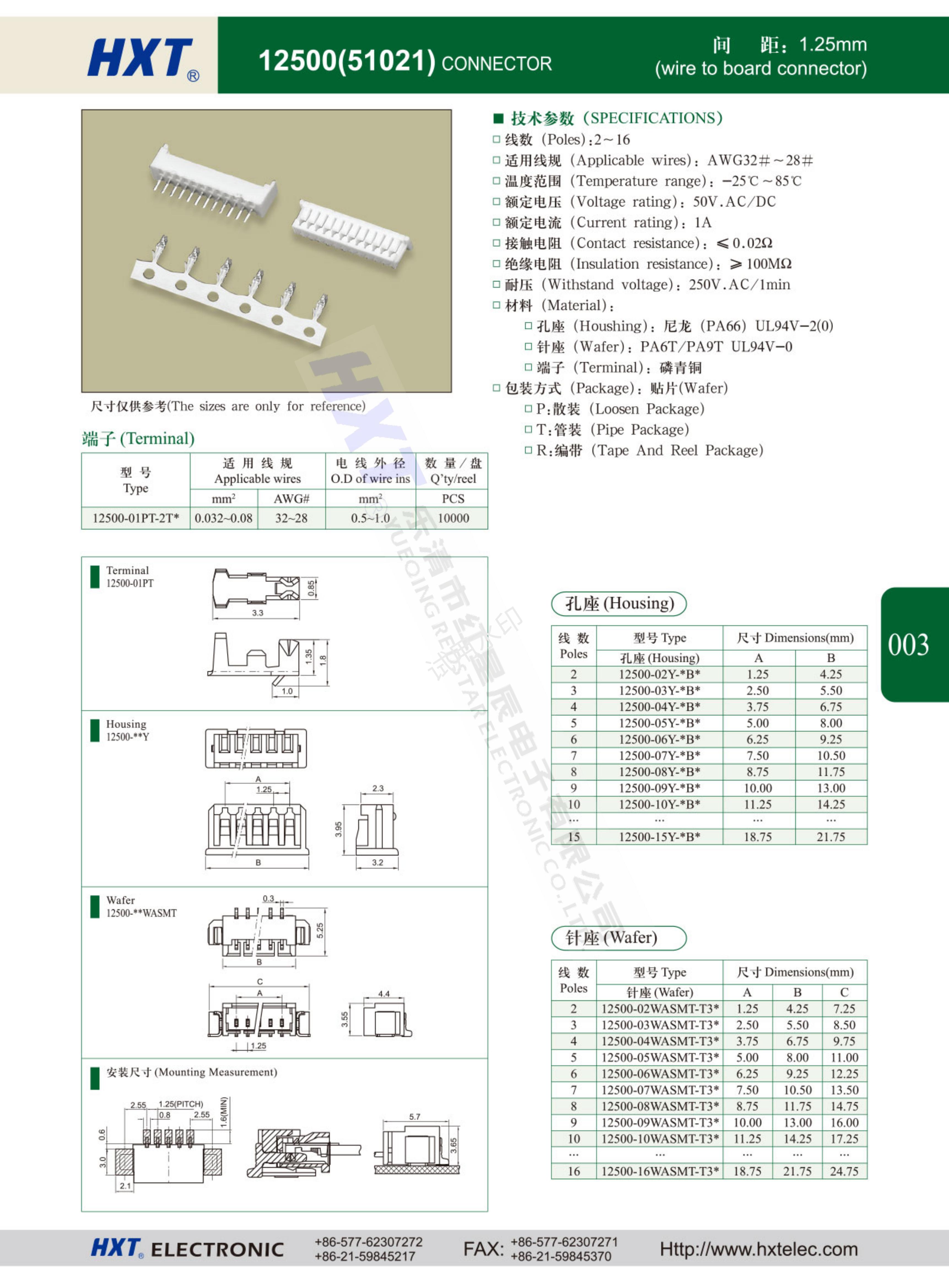

12500(51021)连接器

■技术参数(SPECIFICATIONS)

口线数(Poles):2~16

口适用线规(Applicable wires):AWG32#~28#

口温度范围(Temperature range):-25℃~85℃

口额定电压(Voltage rating):50V.AC/DC

口额定电流(Current rating):1A

口接触电阻(Contact resistance):≤0.02Ω

口绝缘电阻(Insulation resistance):≥100MΩ

口耐压(Withstand voltage):250V.AC/1min

口材料(Material):

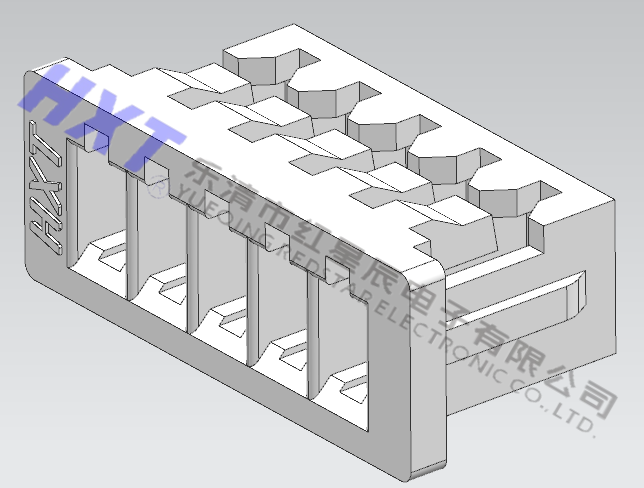

口孔座(Houshing):尼龙(PA66)UL94V-2(0)

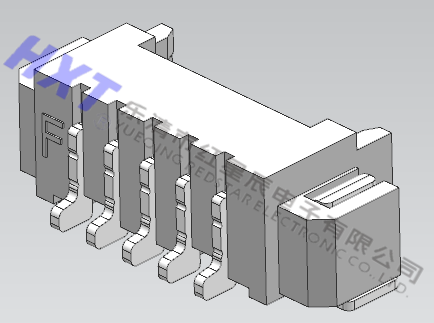

口针座(Wafer):PA6T/PA9T UL94V-0

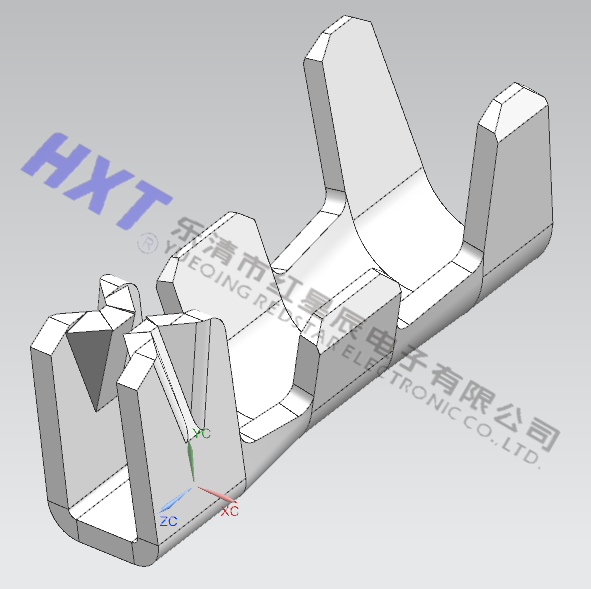

口端子(Terminal):磷青铜

口包装方式(Package):贴片(Wafer)

□P:散装(Loosen Package)

口T:管装(Pipe Package)

□R:编带(Tape And Reel Package)

12500-PT-2T1 500588000 1734193-1 15000-PT-2T2 500588000 1734193-1 12500-PT-2G2 500588025 12500-02Y-0B2 510210200 440146-2 12500-03Y-0B2 510210300 440146-3 12500-04Y-0B2 510210400 440146-4 12500-05Y-0B2 510210500 440146-5 12500-06Y-0B2 510210600 440146-6 12500-07Y-0B2 510210700 440146-7 12500-08Y-0B2 510210800 440146-8 12500-09Y-0B2 510210900 440146-9 12500-10Y-0B2 510211000 1-440146-0 12500-11Y-0B2 510211100 1-440146-1 12500-12Y-0B2 510211200 1-440146-2 12500-13Y-0B2 510211300 1-440146-3 12500-14Y-0B2 510211400 1-440146-4 12500-15Y-0B2 510211500 1-440146-5 12500-17Y-0B2 510211700 1-440146-7 12500-02A-T0P 530470210 2-1734598-2 12500-03A-T0P 530470310 2-1734598-3 12500-04A-T0P 530470410 2-1734598-4 12500-05A-T0P 530470510 2-1734598-5 12500-06A-T0P 530470610 2-1734598-6 12500-07A-T0P 530470710 2-1734598-7 12500-08A-T0P 530470810 2-1734598-8 12500-09A-T0P 530470910 2-1734598-9 12500-10A-T0P 530471010 3-1734598-0 12500-11A-T0P 530471110 3-1734598-1 12500-12A-T0P 530471210 3-1734598-2 12500-13A-T0P 530471310 3-1734598-3 12500-14A-T0P 530471410 3-1734598-4 12500-15A-T0P 530471510 3-1734598-5 12500-02WA-T0P 530480210 1734829-2 12500-03WA-T0P 530480310 1734829-3 12500-04WA-T0P 530480410 1734829-4 12500-05WA-T0P 530480510 1734829-5 12500-06WA-T0P 530480610 1734829-6 12500-07WA-T0P 530480710 1734829-7 12500-08WA-T0P 530480810 1734829-8 12500-09WA-T0P 530480910 1734829-9 12500-10WA-T0P 530481010 1-1734829-0 12500-11WA-T0P 530481110 1-1734829-1 12500-12WA-T0P 530481210 1-1734829-2 12500-13WA-T0P 530481310 1-1734829-3 12500-14WA-T0P 530481410 1-1734829-4 12500-15WA-T0P 530481510 1-1734829-5 HX12501-2AB-3 533980267 1734260-2 HX12501-3AB-3 533980367 1734260-3 HX12501-4AB-3 533980467 1734260-4 HX12501-5AB-3 533980567 1734260-5 HX12501-6AB-3 533980667 1734260-6 HX12501-7AB-3 533980767 1734260-7 HX12501-8AB-3 533980867 1734260-8 HX12501-9AB-3 533980967 1734260-9 HX12501-10AB-3 533981067 1-1734260-0 HX12501-11AB-3 533981167 1-1734260-1 HX12501-12AB-3 533981267 1-1734260-2 HX12501-13AB-3 533981367 1-1734260-3 HX12501-14AB-3 533981467 1-1734260-4 HX12501-15AB-3 533981567 1-1734260-5 HX12501-2AWB-3 532610271 1734261-2 HX12501-3AWB-3 532610371 1734261-3 HX12501-4AWB-3 532610471 1734261-4 HX12501-5AWB-3 532610571 1734261-5 HX12501-6AWB-3 532610671 1734261-6 HX12501-7AWB-3 532610771 1734261-7 HX12501-8AWB-3 532610871 1734261-8 HX12501-9AWB-3 532610971 1734261-9 HX12501-10AWB-3 532611071 1-1734261-0 HX12501-11AWB-3 532611171 1-1734261-1 HX12501-12AWB-3 532611271 1-1734261-2 HX12501-13AWB-3 532611371 1-1734261-3 HX12501-14AWB-3 532611471 1-1734261-4 HX12501-15AWB-3 532611571 1-1734261-5 HX12500-RT 501258000 HX12500-RT 501338000 HX12500-2R 510470200 HX12500-3R 510470300 HX12500-4R 510470400 HX12500-5R 510470500 HX12500-6R 510470600 HX12500-7R 510470700 HX12500-8R 510470800 HX12500-9R 510470900 HX12500-10R 510471000 530480250 1734598-2 530480350 1734598-3 530480450 1734598-4 530480550 1734598-5 530480650 1734598-6 530480750 1734598-7 530480850 1734598-8 530480950 1734598-9 530481050 1-1734598-0 530481150 1-1734598-1 530481250 1-1734598-2 530481350 1-1734598-3 530481450 1-1734598-4 530481550 1-1734598-5 533980271 4-1734598-2 533980371 4-1734598-3 533980471 4-1734598-4 533980571 4-1734598-5 533980671 4-1734598-6 533980771 4-1734598-7 533980871 4-1734598-8 533980971 4-1734598-9 533981071 5-1734598-0 533981171 5-1734598-1 533981271 5-1734598-2 533981371 5-1734598-3 533981471 5-1734598-4 533981571 5-1734598-5 532611771 3-1734260-2 532617002 3-1734260-3 532617003 3-1734260-4 532617004 3-1734260-5 532617005 3-1734260-6 532617006 3-1734260-7 532617007 3-1734260-8 532617008 3-1734260-9 532617009 4-1734260-0 532617010 4-1734260-1 532617011 4-1734260-2 532617012 4-1734260-3 532617013 4-1734260-4 532617014 4-1734260-5 532617015 3-1734261-2 3-1734261-3 3-1734261-4 3-1734261-5 3-1734261-6 3-1734261-7 3-1734261-8 3-1734261-9 4-1734261-0 4-1734261-1 4-1734261-2 4-1734261-3 4-1734261-4 4-1734261-5 5-1734261-2 High Performance Interconnect (HPI) Connectors TE MOLEX PicoBlade Connector System
