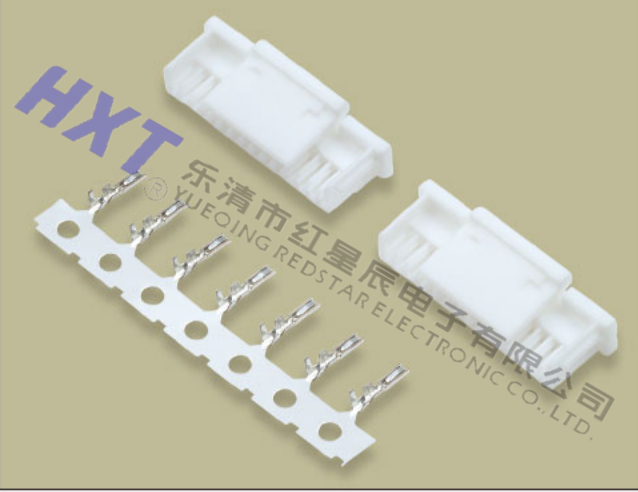

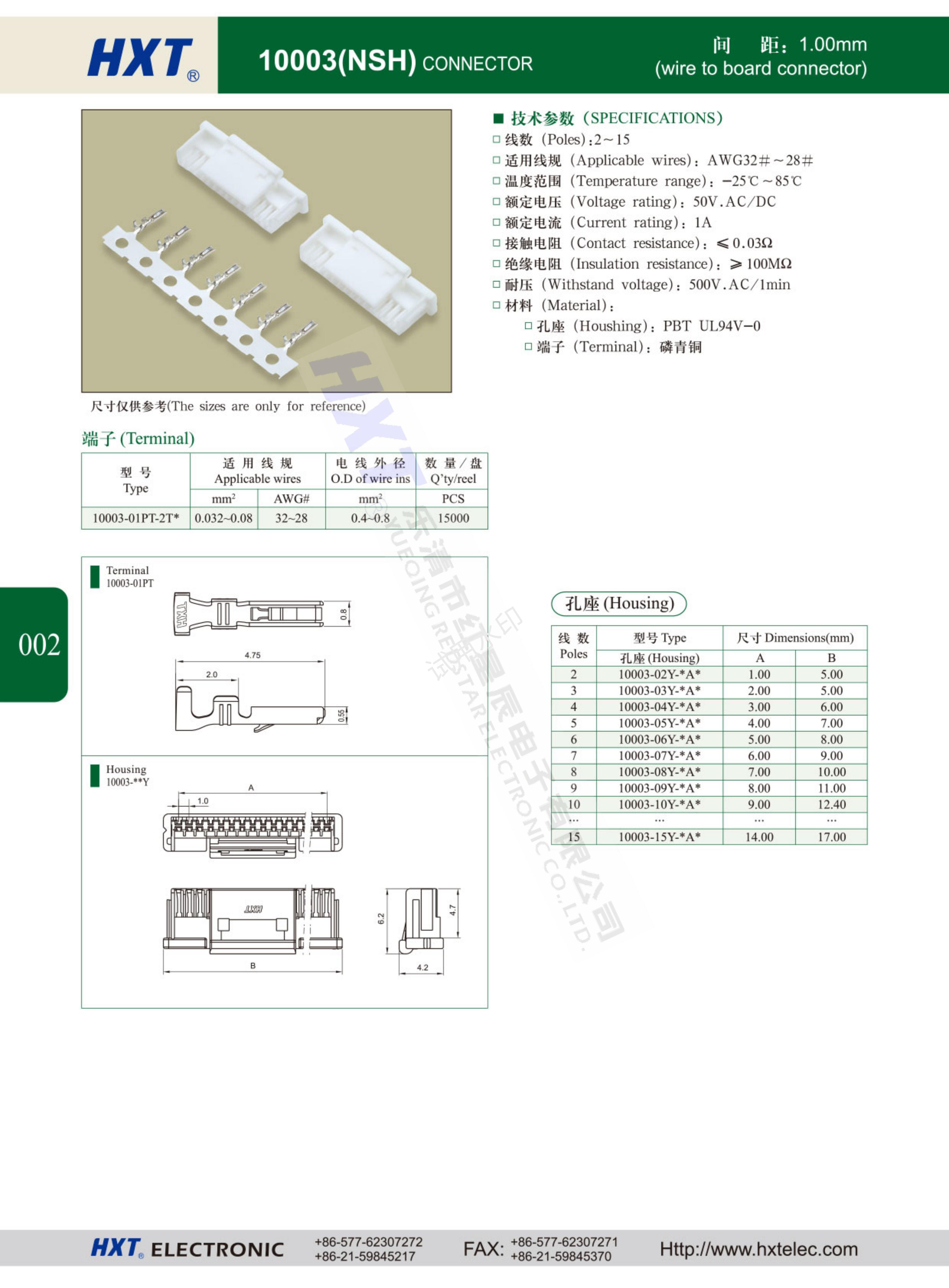

10003(NSH)连接器

■技术参数(SPECIFICATIONS)

口线数(Poles):2~15

口适用线规(Applicable wires):AWG32#~28#

口温度范围(Temperature range):-25℃~85℃

口额定电压(Voltage rating):50V.AC/DC

口额定电流(Current rating):1A

口接触电阻(Contact resistance):≤0.03Ω

口绝缘电阻(Insulation resistance):≥100MΩ

口耐压(Withstand voltage):500V.AC/1min

口材料(Material):

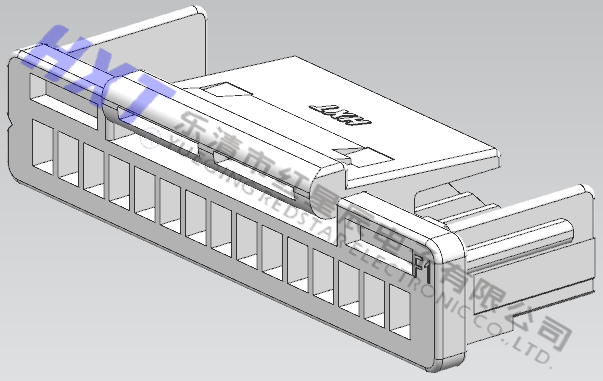

口孔座(Houshing):PBT UL94V-0

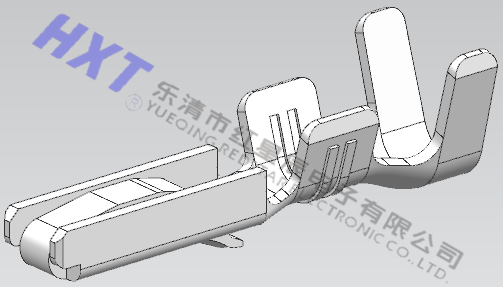

口端子(Terminal):磷青铜
