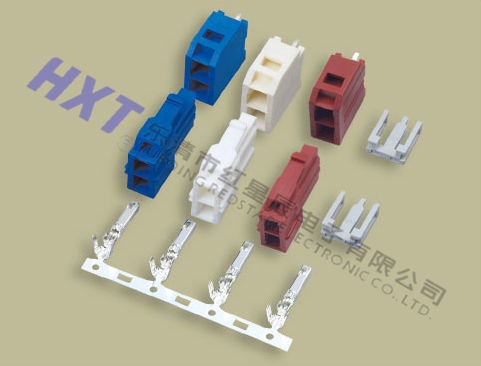

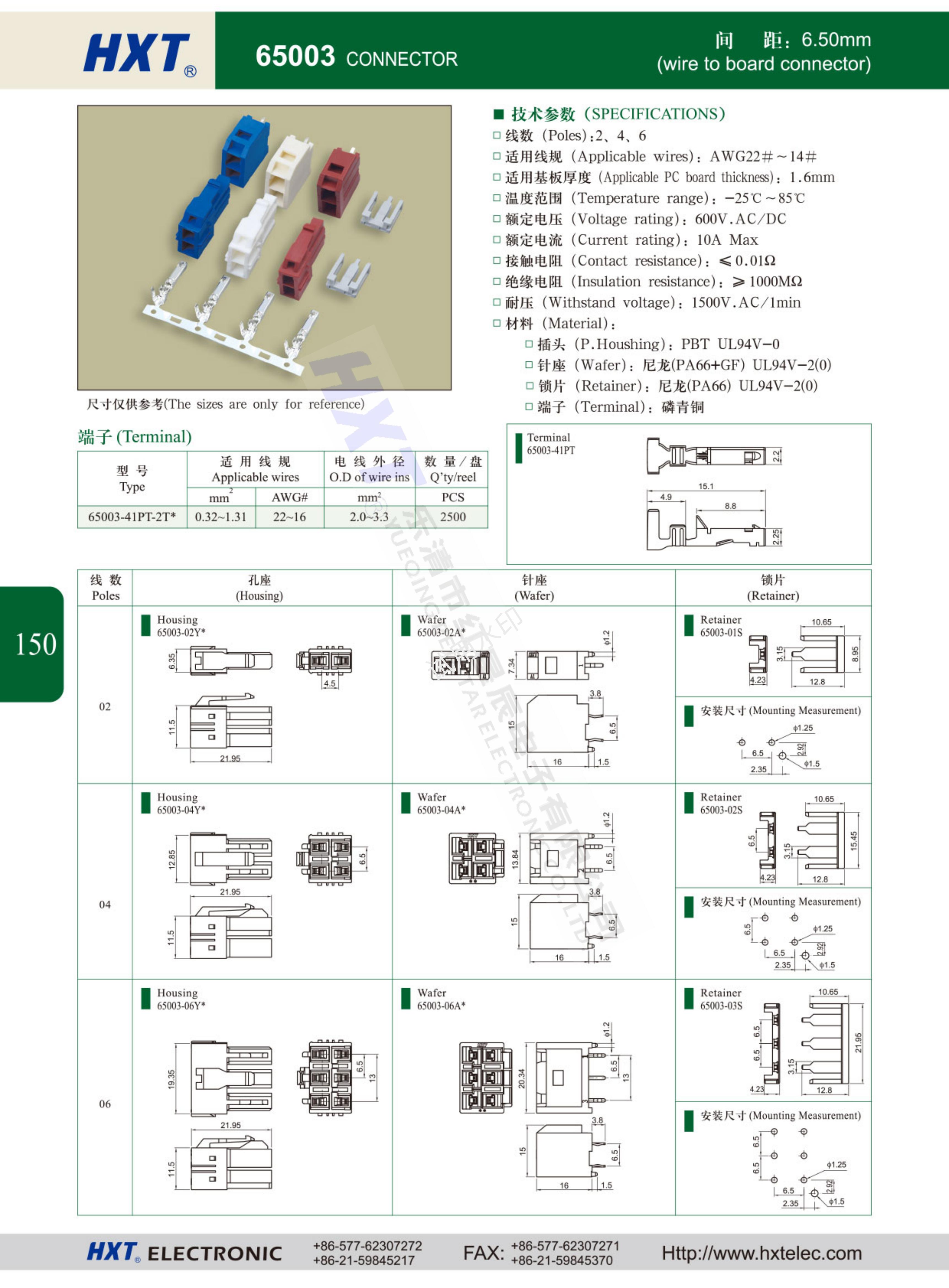

65003 连接器

■技术参数(SPECIFICATIONS)

口线数(Poles):2、4、6

口适用线规(Applicable wires):AWG22#~14#

口适用基板厚度(Applicable PC board thickness):1.6mm

口温度范围(Temperature range):-25℃～85℃

口额定电压(Voltage rating):600V.AC/DC

口额定电流(Current rating):10A Max

口接触电阻(Contact resistance):≤0.01Ω

口绝缘电阻(Insulation resistance):≥1000MQ

口耐压(Withstand voltage):1500V.AC/1min

口材料(Material):

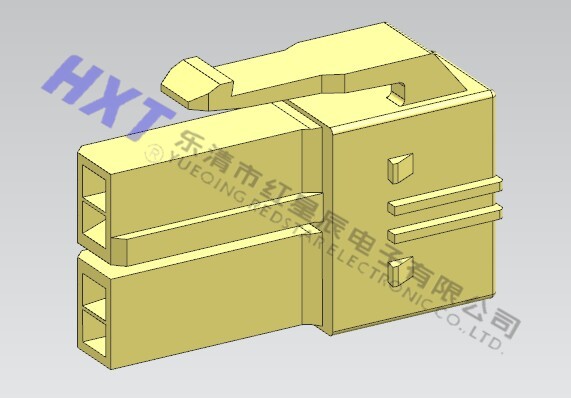

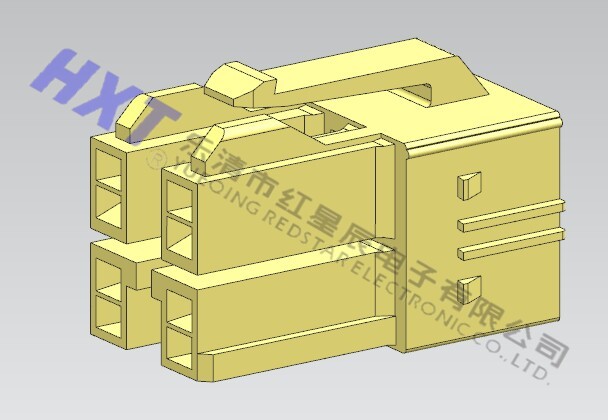

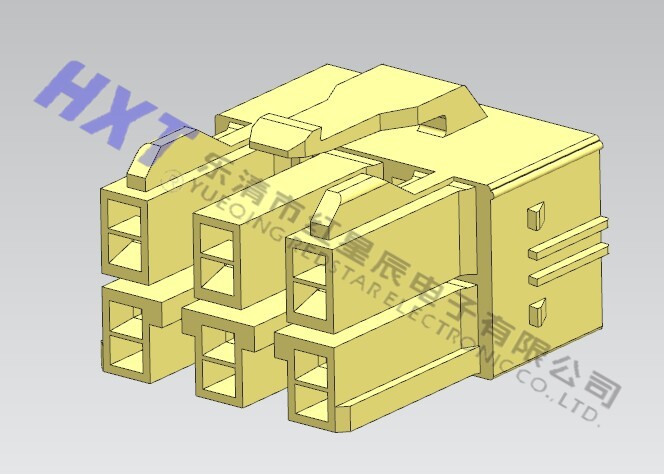

口插头(P.Houshing):PBT UL94V-0

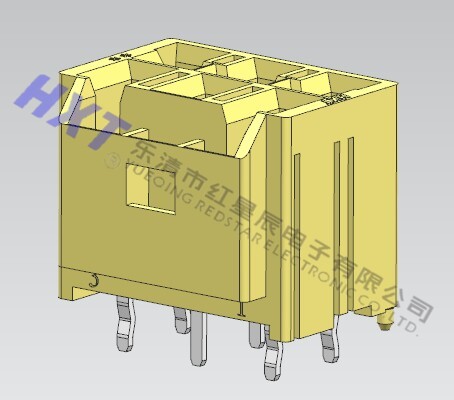

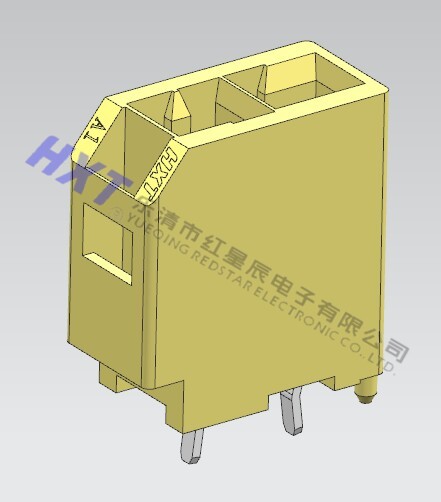

口针座(Wafer):尼龙(PA66+GF)UL94V-2(0)

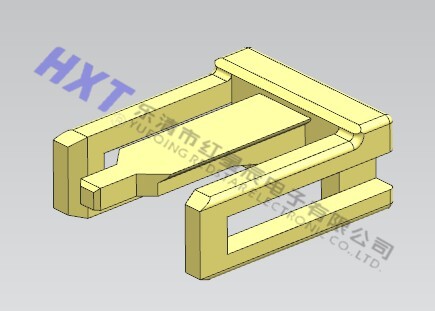

口锁片(Retainer):尼龙(PA66)UL94V-2(0)

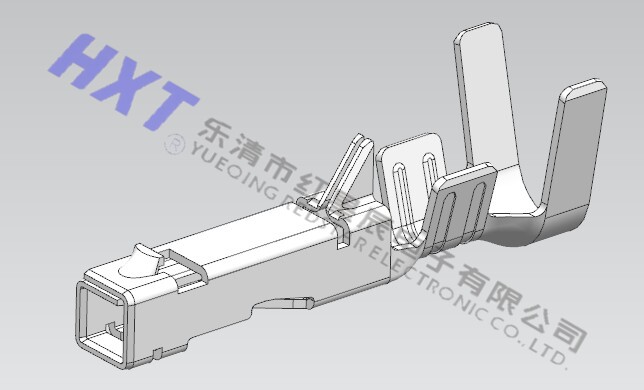

口端子(Terminal):磷青铜
