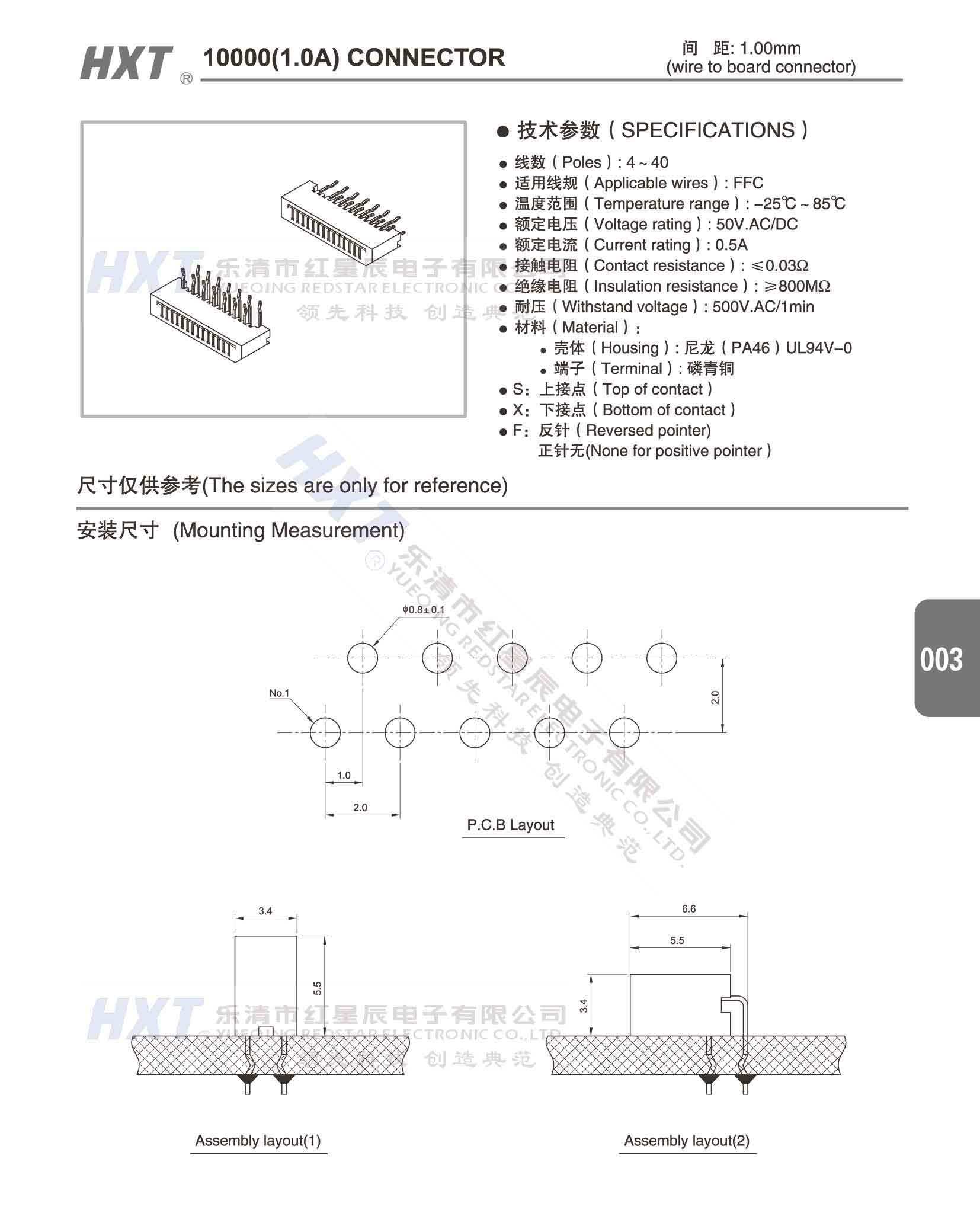

10000(1.0A) 连接器

●技术参数(SPECIFICATIONS)

●线数(Poles):4~40

●适用线规(Applicable wires):FFC

●温度范围(Temperature range):-25℃~85℃

●额定电压(Voltage rating):50V.AC/DC

●额定电流(Current rating):0.5A

●接触电阻(Contact resistance):≤0.03Ω

●绝缘电阻(Insulation resistance):≥800MQ

●耐压(Withstand voltage):500V.AC/1min

●材料(Material):

●壳体(Housing):尼龙(PA46)UL94V-0

●端子(Terminal):磷青铜

●S:上接点(Top of contact)

●X:下接点(Bottom of contact)

●F:反针(Reversed pointer)正针无(None for positive pointer
